ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Engine Diagram

Name: ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Engine Diagram
SKU: estate_792_2t0780481_st1p_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Engine Diagram

Description

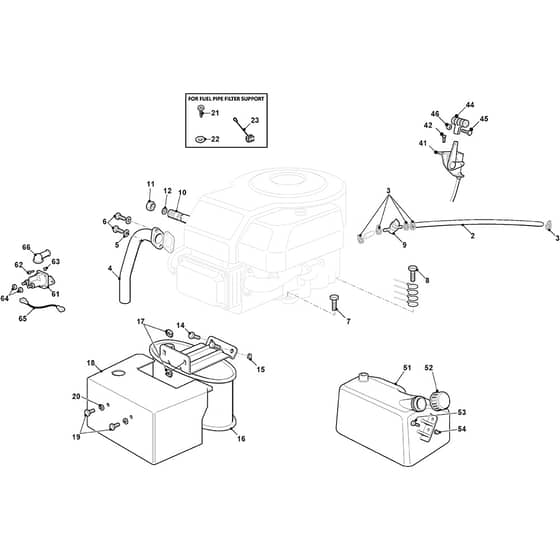

Stiga ESTATE 792 Parts Diagram

Product Name - ESTATE 792

Model Year - 2022-2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST1P

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
3	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
3	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.82 £1.52
4	MO118738231/2 Available to backorder	Exhaust Connection Tube From S.N 22KA3RON013348	£21.30 £17.75
6	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
7	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
8	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
9	MO118566119/0 Available to backorder	Shut Out Valve	£14.64 £12.20
10	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.17 £6.81
11	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
14	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO182750015/0 Available to backorder	Muffler	£115.43 £96.19
17	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
18	MO382598039/0 Available to backorder	Guard	£68.99 £57.49
19	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
21	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
22	MO112523020/0 In stock	Washer	£1.55 £1.29
23	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
41	MO182000212/0 Available to backorder	Accelerator	£23.51 £19.59
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO325592000/1 Available to backorder	Knob	£2.40 £2.00
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
51	MO325735131/0 Available to backorder	Fuel Tank [8 Litres] with fuel indicator	£64.33 £53.61
52	MO137793051/0 Available to backorder	Fuel Tank Cap	£13.19 £10.99
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
66	MO118564861/2 Available to backorder	Rubber Terminal Cover [Red]	£6.76 £5.63
