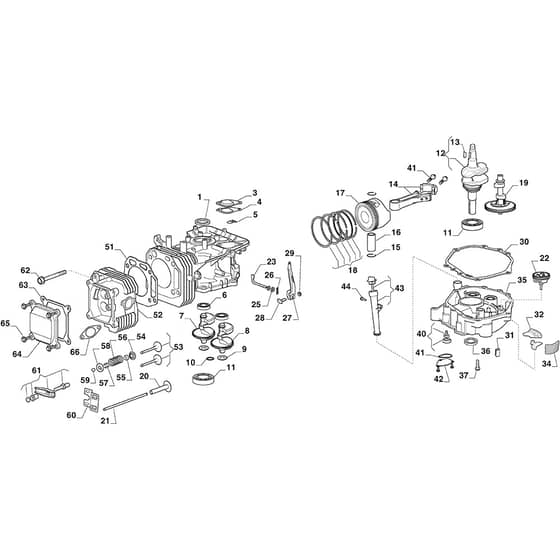

ESTATE 792 - 2022-2024 - 2T0780481/ST1 - Stiga Ride On Mower Crankshaft Diagram

Name: ESTATE 792 - 2022-2024 - 2T0780481/ST1 - Stiga Ride On Mower Crankshaft Diagram
SKU: estate_792_2t0780481_st1_crankshaft-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 792 - 2022-2024 - 2T0780481/ST1 - Stiga Ride On Mower Crankshaft Diagram

Description

Stiga ESTATE 792 Parts Diagram

Product Name - ESTATE 792

Model Year - 2022-2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST1

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
4	MO118551229/0 Available to backorder	Gasket	£3.67 £3.06
6	MO118551284/0 Available to backorder	Bearing	£13.37 £11.14
7	MO118551242/0 Available to backorder	Counterweight	£52.08 £43.40
8	MO118551243/0 Available to backorder	Counterweight	£52.08 £43.40
9	MO118551282/0 Available to backorder	Washer	£1.97 £1.64
10	MO118551286/0 Available to backorder	O Ring	£1.69 £1.41
11	MO118550227/0 Available to backorder	Ball Bearing	£21.40 £17.83
12	MO118550232/0 Available to backorder	Crankshaft	£197.09 £164.24
13	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
14	MO118552503/0 Available to backorder	Connecting Rod Assy	£24.91 £20.76
15	MO118551283/0 Available to backorder	Washer. Piston Pin	£1.40 £1.17
16	MO118551241/0 Available to backorder	Piston Pin	£7.31 £6.09
17	MO118551240/0 Available to backorder	Piston	£40.82 £34.02
18	MO118550510/0 Available to backorder	Piston. Ring Set	£10.31 £8.59
19	MO118551511/0 Available to backorder	Camshaft Assy	£111.91 £93.26
20	MO118551252/0 Available to backorder	Valve Lifter	£5.64 £4.70
21	MO118550242/1 Available to backorder	Push Rods Assy	£5.65 £4.71
22	MO118551506/0 Available to backorder	Speed Governor Assy	£20.34 £16.95
23	MO118551505/0 Available to backorder	Shaft. Governor Arm	£9.92 £8.27
25	MO118551285/0 Available to backorder	Oil Seal	£3.34 £2.78
30	MO118550355/1 Available to backorder	Crankcase Gasket	£16.88 £14.07
32	MO118551257/1 Available to backorder	Cover	£7.60 £6.33
34	MO118551256/1 Available to backorder	Oil Strainer	£4.22 £3.52
35	MO118551207/0 Available to backorder	Crankcase Cover	£168.92 £140.77
36	MO118551418/0 Available to backorder	Oil Seal	£11.96 £9.97
37	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
38	MO118552504/0 Available to backorder	Bolt	£3.67 £3.06
40	MO118550224/1 Available to backorder	Oil Pump	£20.90 £17.42
41	MO118551507/0 Available to backorder	Gasket	£2.40 £2.00
42	MO118550223/0 Available to backorder	Oli Pump Cover	£5.64 £4.70
43	MO118550444/1 Available to backorder	Oil Filler Assy	£23.80 £19.83
44	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
51	MO118551236/0 Available to backorder	Gasket	£15.20 £12.67
52	MO118551231/0 Available to backorder	Cylinder Head	£162.53 £135.44
54	MO118551245/0 Available to backorder	Plate	£2.93 £2.44
55	MO118551248/0 Available to backorder	Gasket	£8.29 £6.91
56	MO118550529/0 Available to backorder	Spring Valve	£6.05 £5.04
57	MO118551247/0 Available to backorder	Valve Keeper	£1.55 £1.29
58	MO118551246/0 Available to backorder	Retainer	£4.66 £3.88
59	MO118551244/0 Available to backorder	Valve Cap	£2.95 £2.46
60	MO118551255/0 Available to backorder	Plate	£4.50 £3.75
61	MO118551510/0 Available to backorder	Valve Arm Set	£7.46 £6.22
63	MO118551531/0 In stock	Gasket	£16.61 £13.84
64	MO118551534/0 In stock	Cover Comp. Head	£8.46 £7.05
65	MO118551535/0 In stock	Bolt	£2.26 £1.88
66	MO118551272/0 Available to backorder	Muffler Gasket	£2.53 £2.11
