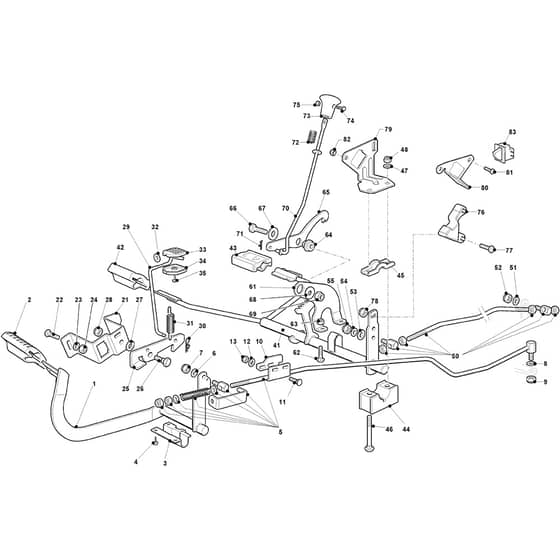

ESTATE 7122 HWSY - 2021 - 2T1310381/ST1PSA - Stiga Ride On Mower Brake and Gearbox Controls Diagram

Name: ESTATE 7122 HWSY - 2021 - 2T1310381/ST1PSA - Stiga Ride On Mower Brake and Gearbox Controls Diagram
SKU: estate_7122_hwsy_2t1310381_st1psa_brake_and_gearbox_controls-gro
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 7122 HWSY - 2021 - 2T1310381/ST1PSA - Stiga Ride On Mower Brake and Gearbox Controls Diagram

Description

Stiga ESTATE 7122 HWSY Parts Diagram

Product Name - ESTATE 7122 HWSY

Model Year - 2021

Model Type - TNSE 122 Hydro

Art.N - 2T1310381/ST1PSA

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO325110416/0 Available to backorder	Clamp Cover	£10.84 £9.03
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
10	MO325547281/1 Available to backorder	Plate	£6.62 £5.52
21	MO325785143/1 Available to backorder	Support	£4.33 £3.61
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
27	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
29	MO125033097/0 Available to backorder	Rod	£13.87 £11.56
30	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
33	MO325592001/1 Available to backorder	Knob	£1.40 £1.17
34	MO325592002/1 Available to backorder	Knob	£1.40 £1.17
35	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
41	MO382000389/1 Available to backorder	Feed.Reverse Gear Control Axle Assy	£84.47 £70.39
42	MO325110417/0 Available to backorder	Clamp Cover Front	£10.84 £9.03
43	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.84 £9.03
44	MO325785185/0 Available to backorder	Support	£3.67 £3.06
45	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
46	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
50	MO382000579/0 Available to backorder	Control Rod Assy Tuff Torq Transmission	£33.79 £28.16
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO112523040/0 In stock	Washer	£1.49 £1.24
55	MO112154510/0 In stock	Nut	£1.55 £1.29
61	MO325774477/0 Available to backorder	Clamp	£24.78 £20.65
62	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
64	MO125040638/0 Available to backorder	Bushing	£5.48 £4.57
65	MO325022000/1 Available to backorder	Hook	£39.42 £32.85
66	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
67	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
68	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
69	MO112155000/0 In stock	Nut	£1.55 £1.29
70	MO125033091/0 Available to backorder	Rod	£13.31 £11.09
71	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
72	MO125430232/0 Available to backorder	Spring	£1.55 £1.29
73	MO325605002/0 Available to backorder	Button	£2.40 £2.00
74	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
75	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
76	MO325060050/0 Available to backorder	Cam	£4.93 £4.11
77	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
78	MO112154330/0 In stock	Nut	£1.55 £1.29
80	MO325785479/0 Available to backorder	Micro Switch Bracket	£8.65 £7.21
81	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
82	MO112292102/0 In stock	Nut	£1.69 £1.41
83	MO119410623/0 Available to backorder	Micro Switch N.C.	£7.62 £6.35
