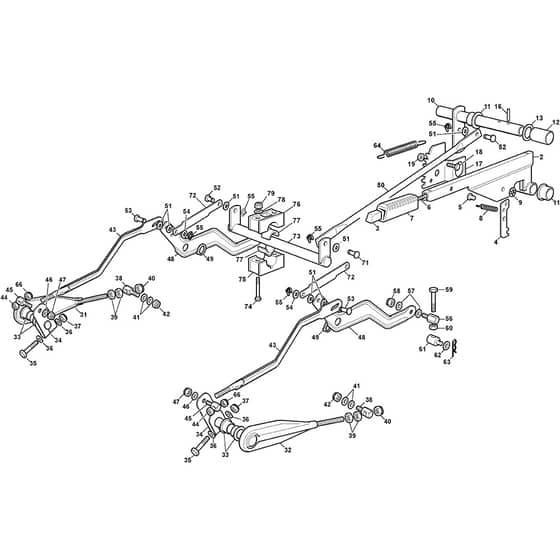

ESTATE 7122 HWSY - 2020-2021 - 2T1310381/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Name: ESTATE 7122 HWSY - 2020-2021 - 2T1310381/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram
SKU: estate_7122_hwsy_2t1310381_st1_cutting_plate_lifting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 7122 HWSY - 2020-2021 - 2T1310381/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

Stiga ESTATE 7122 HWSY Parts Diagram

Product Name - ESTATE 7122 HWSY

Model Year - 2020-2021

Model Type - TNSE 122 Hydro

Art.N - 2T1310381/ST1

Engine Model - GXV 630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.26 £1.88
4	MO325470901/1 Available to backorder	Dog Plate	£11.53 £9.61
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Rod	£4.22 £3.52
7	MO325394536/0 Available to backorder	Knob	£1.69 £1.41
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000551/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£24.64 £20.53
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer	£6.20 £5.17
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
16	MO112620206/0 Available to backorder	Pin	£1.40 £1.17
17	MO325735506/2 Available to backorder	Left Sector	£22.10 £18.42
18	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
19	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
31	MO382318159/0 Available to backorder	Front Right Fulcrum Lever	£20.14 £16.78
32	MO382318161/0 Available to backorder	Lever	£23.23 £19.36
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.00 £7.50
35	MO112691700/0 In stock	Screw	£1.82 £1.52
38	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
39	MO112295200/0 In stock	Nut	£1.40 £1.17
41	MO325670008/1 In stock	Washer	£1.55 £1.29
42	MO112156602/0 In stock	Nut	£1.40 £1.17
43	MO382000477/3 Available to backorder	Cuttining Deck Lever Front Connecting Rod	£18.31 £15.26
45	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
46	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
47	MO112155000/0 In stock	Nut	£1.55 £1.29
79	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
