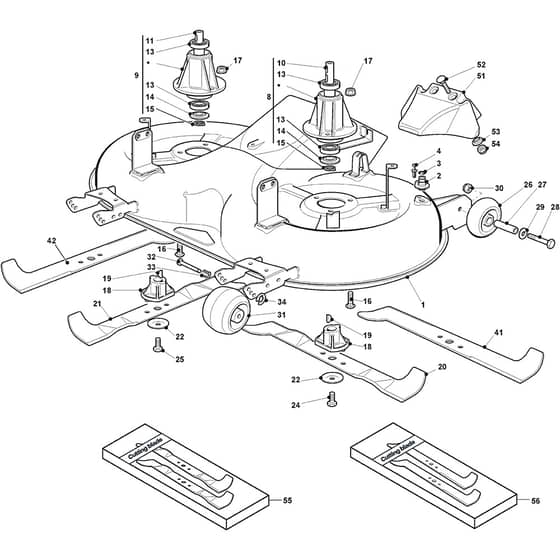

ESTATE 7102 W - 2023-2024 - 2T0970481/ST1P - Stiga Ride On Mower Cutting Plate Diagram

Description

Stiga ESTATE 7102 W Parts Diagram

Product Name - ESTATE 7102 W

Model Year - 2023-2024

Model Type - TCNS 102 Hydro

Art.N - 2T0970481/ST1P

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564131/1 Available to backorder	Cutting Plate Black Black From S.N 23AA1RON001831	£655.63 £546.36
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.49 £1.24
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.35 £84.46
9	MO382207201/3LC Available to backorder	Secondary Blade Shaft Ass.Y	£91.51 £76.26
10	MO125020832/0 Available to backorder	Main Blade Shaft	£39.76 £33.13
11	MO125020833/0 Available to backorder	Secondary Blade Shaft	£31.46 £26.22
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
15	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
16	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
18	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004347/0 In stock	Left Mulching Blade. Winged	£30.97 £25.81
21	MO182004348/0 In stock	Right Mulching Blade. Winged	£30.97 £25.81
22	MO125160503/0 In stock	Blade Hub Elastic Disc Lawntr.	£3.50 £2.92
24	MO112735696/0 In stock	Screw	£2.65 £2.21
25	MO112735697/1 In stock	Screw	£2.12 £1.77
26	MO182700003/0 Available to backorder	Anti Scalp Wheel	£10.42 £8.68
27	MO125510072/1 In stock	Pin	£1.82 £1.52
28	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.69 £1.41
31	MO182700004/0 Available to backorder	Anti Scalp Wheel	£18.86 £15.72
32	MO125510121/1 Available to backorder	Pin	£9.22 £7.68
33	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
34	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
41	MO182004340/1 In stock	Left Blade. Winged	£29.63 £24.69
42	MO182004341/1 In stock	Right Blade. Winged	£29.63 £24.69
51	MO325140100/0 Available to backorder	Deflector	£20.34 £16.95
52	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
53	MO125038002/1 In stock	Bushing	£1.55 £1.29
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO1134-9227-01 Available to backorder	Mulching Blades Stiga Packed into 182004347.0 + 182004348.0	£74.06 £61.72
56	MO1134-9228-01 Available to backorder	Winged Blade 102cm.40" [Stiga Pack]	£74.06 £61.72
