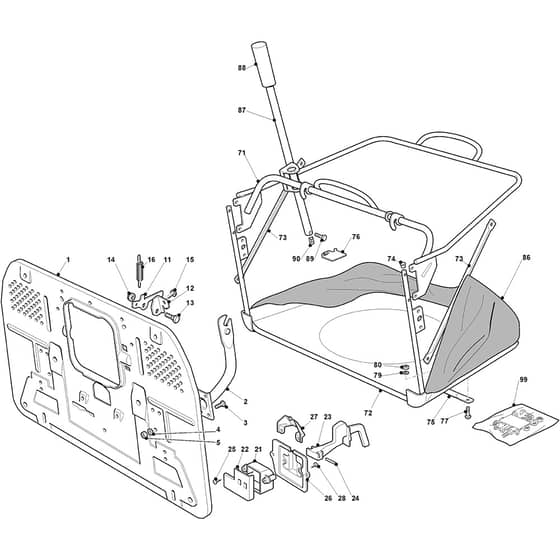

ESTATE 7102 HWSY - 2020-2021 - 2T0980381/ST1P - Stiga Ride On Mower Grasscatcher Diagram

Name: ESTATE 7102 HWSY - 2020-2021 - 2T0980381/ST1P - Stiga Ride On Mower Grasscatcher Diagram
SKU: estate_7102_hwsy_2t0980381_st1p_grasscatcher-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 7102 HWSY - 2020-2021 - 2T0980381/ST1P - Stiga Ride On Mower Grasscatcher Diagram

Description

Stiga ESTATE 7102 HWSY Parts Diagram

Product Name - ESTATE 7102 HWSY

Model Year - 2020-2021

Model Type - TNSE 102 Hydro

Art.N - 2T0980381/ST1P

Engine Model - GXV 630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547053/1 Available to backorder	Rear Plate	£849.86 £708.22
2	MO182774225/1 Available to backorder	Clamp	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.69 £1.41
11	MO325774315/1 Available to backorder	Bracket	£3.94 £3.28
12	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
13	MO125510080/2 Available to backorder	Pin	£1.40 £1.17
14	MO112292102/0 In stock	Nut	£1.69 £1.41
15	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
16	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
21	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.91 £3.26
22	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
23	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
24	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
25	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
26	MO325785272/1 Available to backorder	Micro Protection	£2.12 £1.77
27	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
28	MO112728450/0 In stock	Screw	£1.55 £1.29
71	MO382800123/1 Available to backorder	Upper Frame	£218.21 £181.84
72	MO382800091/1 Available to backorder	Upper Frame	£33.79 £28.16
73	MO325650117/0 Available to backorder	Stiffening	£7.31 £6.09
74	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
75	MO382650043/0 Available to backorder	Lower Stiffening	£20.77 £17.31
76	MO325547131/0 Available to backorder	Plate	£3.67 £3.06
77	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
79	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
80	MO112154510/0 In stock	Nut	£1.55 £1.29
86	MO182105933/0 Available to backorder	Grasscatcher Black with STIGA Logo	£154.86 £129.05
87	MO125869029/1 Available to backorder	Grasscatcher Lifting Tube	£29.56 £24.63
88	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
89	MO112788800/0 Available to backorder	Screw	£1.40 £1.17
90	MO112157000/0 Available to backorder	Nut	£1.55 £1.29
99	MO382180110/0 Available to backorder	Grasscatcher Screw Outfit	£89.39 £74.49
