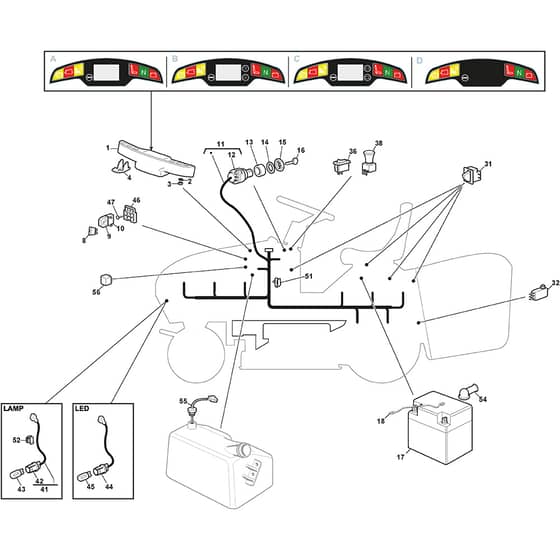

ESTATE 6122 HW2 - 2020 - 2T1310481/ST1 - Stiga Ride On Mower Electric Equipment Diagram

Name: ESTATE 6122 HW2 - 2020 - 2T1310481/ST1 - Stiga Ride On Mower Electric Equipment Diagram
SKU: estate_6122_hw2_2t1310481_st1_electric_equipment-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 6122 HW2 - 2020 - 2T1310481/ST1 - Stiga Ride On Mower Electric Equipment Diagram

Description

Stiga ESTATE 6122 HW2 Parts Diagram

Product Name - ESTATE 6122 HW2

Model Year - 2020

Model Type - TCNS 122 Hydro

Art.N - 2T1310481/ST1

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382722432/1 Available to backorder	Electronic Card + Guards	£395.57 £329.64
2	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
3	MO112154330/0 In stock	Nut	£1.55 £1.29
4	MO325031501/0 Available to backorder	Buzzer Sound Amplifier	£6.34 £5.28
8	MO133340035/0 Available to backorder	Fuse 15 A	£1.55 £1.29
8	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
8	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
9	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO182040237/0 Available to backorder	Wiring Harness From S.N 20JA1RON001476	£246.35 £205.29
12	MO118450072/0 In stock	Starting Switch	£30.97 £25.81
13	MO118550136/0 Available to backorder	Spacer	£1.55 £1.29
14	MO118550135/0 Available to backorder	Washer	£1.97 £1.64
15	MO118400862/0 Available to backorder	Threaded Ring Nut	£5.21 £4.34
16	MO118210022/0 In stock	Starting Key	£10.14 £8.45
17	MO118120068/0 In stock	Battery 12V 18Ah From S.N 22IA1RON000099	£113.48 £94.57
18	MO125430230/0 Available to backorder	Spring	£3.79 £3.16
31	MO119410622/1 In stock	Microswitch	£6.62 £5.52
32	MO119410605/1 In stock	Microswitch	£39.42 £32.85
36	MO118450084/0 Available to backorder	Headlight Switch	£4.50 £3.75
38	MO118450073/0 In stock	Clutch Switch Yellow	£14.92 £12.43
41	MO182040073/0 Available to backorder	Lamp Holder Harness	£16.51 £13.76
42	MO133500030/0 Available to backorder	Lamp Holder	£3.79 £3.16
43	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
44	MO182040192/0 Available to backorder	Wiring Harness	£19.01 £15.84
45	MO118459104/0 Available to backorder	Led Lamp	£41.96 £34.97
46	MO133500010/1 Available to backorder	Plate	£1.69 £1.41
47	MO112735170/0 Available to backorder	Screw	£1.14 £0.95
51	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
52	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO125290001/0 In stock	Fuel Level Indicator	£62.30 £51.92
56	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
