ESTATE 6102 HWG - 2018-2020 - 2T0980281/STX - Stiga Ride On Mower B&S Engine Diagram

Name: ESTATE 6102 HWG - 2018-2020 - 2T0980281/STX - Stiga Ride On Mower B&S Engine Diagram
SKU: estate_6102_hwg_2t0980281_stx_b_s_engine-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

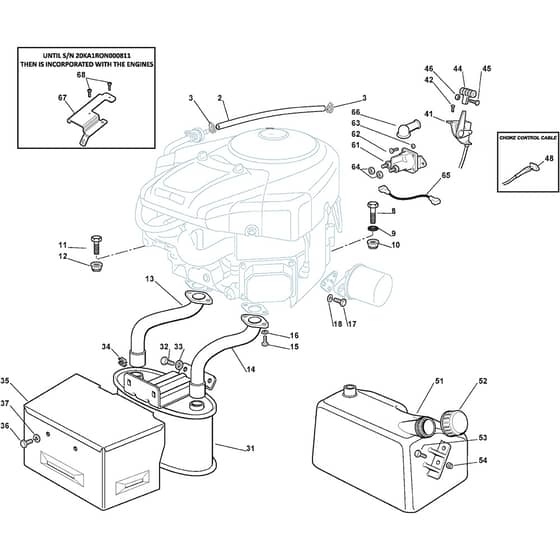

ESTATE 6102 HWG - 2018-2020 - 2T0980281/STX - Stiga Ride On Mower B&S Engine Diagram

Description

Stiga ESTATE 6102 HWG Parts Diagram

Product Name - ESTATE 6102 HWG

Model Year - 2018-2020

Model Type - TCNS 102 Hydro

Art.N - 2T0980281/STX

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Pipe L300	£8.02 £6.68
3	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
11	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
12	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
13	MO118738282/0 Available to backorder	Exaust Discharge Tube Right From S.N 21EA1RON000593	£80.94 £67.45
14	MO118738281/0 Available to backorder	Exaust Discharge Tube Left From S.N 21EA1RON000593	£80.94 £67.45
15	MO112735530/0 Available to backorder	Screw	£1.82 £1.52
17	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
18	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
31	MO182750014/0 Available to backorder	Muffler	£160.48 £133.73
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598005/2 Available to backorder	Muffler Protection	£40.82 £34.02
36	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
41	MO182000218/0 Available to backorder	Accelerator	£30.97 £25.81
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO325592000/1 Available to backorder	Knob	£2.40 £2.00
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
48	MO125090001/2 In stock	Choke Control if foreseen	£19.36 £16.13
51	MO325735131/0 Available to backorder	Fuel Tank [8 Litres]	£64.33 £53.61
52	MO125795001/1 In stock	Cap	£7.96 £6.63
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
66	MO118564861/2 Available to backorder	Protection	£6.76 £5.63
67	MO325774701/0 Available to backorder	Bracket From S.N 20KA1RON000812 included on the engines	£17.60 £14.67
68	MO9943-0516-16 In stock	Self-Tapping Screw M5 X 16	£1.22 £1.02
