ESTATE 6102 HW - 2021 - 2T0970281/ST1PSA - Stiga Ride On Mower Body Diagram

Description

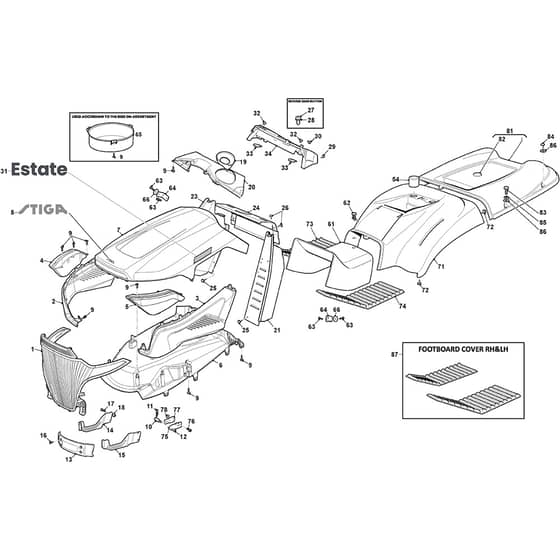

Stiga ESTATE 6102 HW Parts Diagram

Product Name - ESTATE 6102 HW

Model Year - 2021

Model Type - TCNS 102 Hydro

Art.N - 2T0970281/ST1PSA

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076981/0 Available to backorder	Frontal Bonnet	£81.66 £68.05
2	MO325207270/0 Available to backorder	Right Bonnet Side	£63.35 £52.79
3	MO325207271/0 Available to backorder	Left Bonnet Side	£57.58 £47.98
4	MO382185508/0 Available to backorder	Right Led Light Assy	£168.92 £140.77
5	MO382185509/0 Available to backorder	Left Led Light Assy	£168.92 £140.77
6	MO325108100/1 Available to backorder	Air Conveyor. Yellow	£88.68 £73.90
7	MO325076978/0 Available to backorder	Upper Engine Hood. Yellow	£118.25 £98.54
8	MO114367495/1 Available to backorder	Stiga Logo Label	£11.60 £9.67
9	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
10	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
11	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
12	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
13	MO382263503/0 Available to backorder	Bumper	£33.79 £28.16
14	MO382785251/0 Available to backorder	Right Support	£33.79 £28.16
15	MO382785253/0 Available to backorder	Left Support	£33.79 £28.16
16	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
17	MO127943054/0 Available to backorder	Screw	£1.82 £1.52
18	MO112155000/0 In stock	Nut	£1.55 £1.29
19	MO325207272/0 Available to backorder	Cover Tank	£7.25 £6.04
20	MO325598056/1 Available to backorder	Extension Dashboard W.Hole	£29.56 £24.63
21	MO382785021/9 Available to backorder	Left Dashboard Support	£38.20 £31.83
23	MO382785022/10 Available to backorder	Right Dashboard Support	£40.63 £33.86
24	MO382785137/1 Available to backorder	Central Dashboard Support	£13.43 £11.19
26	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
27	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
28	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
29	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
30	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.24 £2.70
31	MO114372972/0 Available to backorder	Denomination Label "Estate" Only for STIGA Brand	£9.16 £7.63
32	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
33	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
34	MO325120276/1 Available to backorder	Grey Dashboard	£35.98 £29.98
54	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
61	MO125110106/0 Available to backorder	Yellow Central Cover	£30.70 £25.58
62	MO125580020/2 In stock	Stake	£8.29 £6.91
64	MO325774703/0 Available to backorder	Bracket	£5.64 £4.70
66	MO112523030/0 Available to backorder	Washer	£1.55 £1.29
71	MO325109717/0 Available to backorder	Yellow Wheels Cover	£139.37 £116.14
72	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
73	MO125110270/0 Available to backorder	Right Footboard Cover	£54.08 £45.07
75	MO325774689/1 Available to backorder	Mobile Bonnet Fulcrum Bracket	£6.62 £5.52
76	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
77	MO325774691/2 Available to backorder	Fixed Bonnet Fulcrum Bracket	£4.66 £3.88
78	MO112154510/0 In stock	Nut	£1.55 £1.29
81	MO182110213/0 Available to backorder	Yellow Grass-Catcher Cover	£153.44 £127.87
82	MO125547105/0 Available to backorder	Yellow Injection Plate	£1.55 £1.29
83	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
84	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
85	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
86	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
87	MO382110314/0 Available to backorder	Left Footboard Cover	£54.08 £45.07
