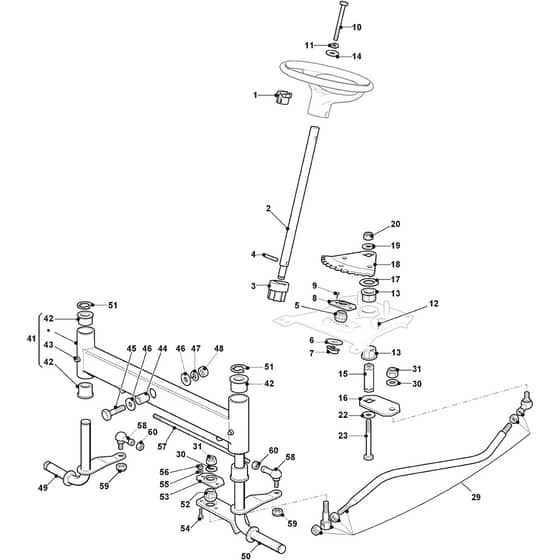

ESTATE 5102 HW - 2021-2022 - 2T1710381/ST1P - Stiga Ride On Mower Steering Diagram

Description

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2021-2022

Model Type - NJNS 102 Hydro

Art.N - 2T1710381/ST1P

Engine Model - GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520014/0 Available to backorder	Steering Column	£45.04 £37.53
3	MO127570050/0 Available to backorder	Pinion	£11.12 £9.27
4	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
6	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
7	MO112436030/0 In stock	Plate	£1.82 £1.52
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
10	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
10	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
11	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
13	MO325040624/0 In stock	Bushing	£1.63 £1.36
14	MO112523060/0 Available to backorder	Washer Not used on Stiga Models	£1.55 £1.29
15	MO125510132/0 Available to backorder	Pin	£18.43 £15.36
16	MO325318281/0 Available to backorder	Lever	£5.64 £4.70
17	MO125670019/0 Available to backorder	Washer	£3.38 £2.82
18	MO325735513/0 In stock	Steering Sector	£14.22 £11.85
20	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
22	MO112523080/0 In stock	Washer	£1.55 £1.29
23	MO112794950/0 Available to backorder	Screw	£3.94 £3.28
29	MO382000610/0 Available to backorder	Steering Rod Assy 15"	£102.76 £85.63
30	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
31	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
41	MO382034036/0 Available to backorder	Equalizer With Bush And Lubricator	£129.52 £107.93
42	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
43	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
44	MO125160016/1 Available to backorder	Spacer	£6.20 £5.17
45	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
46	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
47	MO112587100/0 Available to backorder	Grower	£1.55 £1.29
48	MO112295300/0 Available to backorder	Nut	£1.55 £1.29
49	MO382230377/1 Available to backorder	Right Stub Axle	£66.02 £55.02
50	MO382230379/1 Available to backorder	Left Stub Axle	£85.87 £71.56
51	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
52	MO325743000/0 In stock	Joint	£2.68 £2.23
53	MO325785213/1 Available to backorder	Support	£2.40 £2.00
54	MO112791213/1 In stock	Screw	£1.55 £1.29
55	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
56	MO112154510/0 In stock	Nut	£1.55 £1.29
57	MO125840023/0 Available to backorder	Tie Rod	£14.92 £12.43
58	MO122746609/0 Available to backorder	Joint	£21.83 £18.19
59	MO112156602/0 In stock	Nut	£1.40 £1.17
60	MO112295200/0 In stock	Hexagon Nut M10	£1.40 £1.17
