ESTATE 5102 HW - 2021-2022 - 2T1710381/ST1P - Stiga Ride On Mower Body Diagram

Description

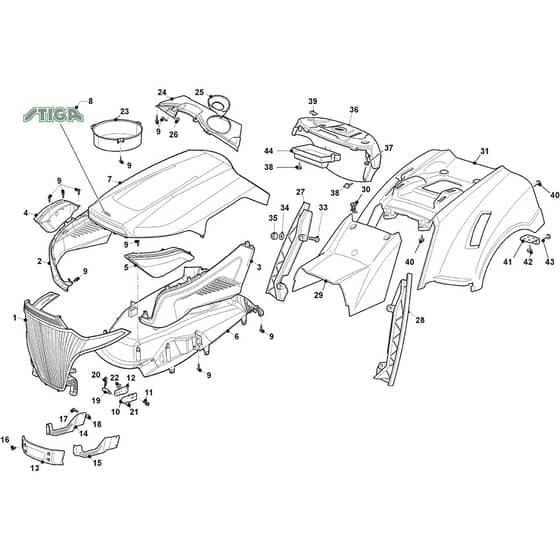

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2021-2022

Model Type - NJNS 102 Hydro

Art.N - 2T1710381/ST1P

Engine Model - GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076981/0 Available to backorder	Frontal Bonnet	£81.66 £68.05
2	MO325207270/0 Available to backorder	Right Bonnet Side	£63.35 £52.79
3	MO325207271/0 Available to backorder	Left Bonnet Side	£57.58 £47.98
4	MO382185508/0 Available to backorder	Right Led Light Assy	£168.92 £140.77
5	MO382185509/0 Available to backorder	Left Led Light Assy	£168.92 £140.77
6	MO325108100/1 Available to backorder	Air Conveyor. Yellow	£88.68 £73.90
7	MO325076978/0 Available to backorder	Upper Engine Hood. Yellow	£118.25 £98.54
8	MO114367495/1 Available to backorder	Stiga Logo Label	£11.60 £9.67
9	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
10	MO325774689/1 Available to backorder	Mobile Bonnet Fulcrum Bracket	£6.62 £5.52
11	MO112735599/0 Available to backorder	Screw To 31-8-2018	£1.55 £1.29
11	MO112815200/0 Available to backorder	Screw From 01-9-2018	£1.55 £1.29
12	MO325774691/2 Available to backorder	Fixed Bonnet Fulcrum Bracket	£4.66 £3.88
13	MO382263503/0 Available to backorder	Bumper	£33.79 £28.16
14	MO382785259/0 Available to backorder	Right Support	£26.33 £21.94
15	MO382785261/0 Available to backorder	Left Support	£26.33 £21.94
16	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
17	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
18	MO112155000/0 In stock	Nut	£1.55 £1.29
19	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
20	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
21	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
23	MO325108103/0 Available to backorder	Conveyor L.40	£9.16 £7.63
24	MO325598056/1 Available to backorder	Extension Dashboard W.Hole	£29.56 £24.63
25	MO325207272/0 Available to backorder	Cover Tank	£7.25 £6.04
26	MO112523030/0 Available to backorder	Washer	£1.55 £1.29
27	MO325599019/0 Available to backorder	Right Dashboard Support	£6.95 £5.79
28	MO325599020/0 Available to backorder	Left Dashboard Support	£7.03 £5.86
29	MO325110365/0 Available to backorder	Central Cover. Yellow	£45.04 £37.53
30	MO125580020/2 In stock	Stake	£8.29 £6.91
31	MO325110323/0 Available to backorder	Yellow Wheels Cover	£165.67 £138.06
33	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
34	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325120273/0 Available to backorder	Dashboard Grey NCS S8000-N	£43.21 £36.01
37	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
39	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
40	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
41	MO325755041/0 Available to backorder	Bracket	£1.69 £1.41
42	MO112728686/0 In stock	Screw	£1.55 £1.29
43	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
44	MO325600074/0 Available to backorder	Pc Board Cover	£9.16 £7.63
