ESTATE 5102 HW - 2021-2022 - 2T1710381/ST1 - Stiga Ride On Mower Transmission Diagram

Name: ESTATE 5102 HW - 2021-2022 - 2T1710381/ST1 - Stiga Ride On Mower Transmission Diagram
SKU: estate_5102_hw_2t1710381_st1_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 5102 HW - 2021-2022 - 2T1710381/ST1 - Stiga Ride On Mower Transmission Diagram

Description

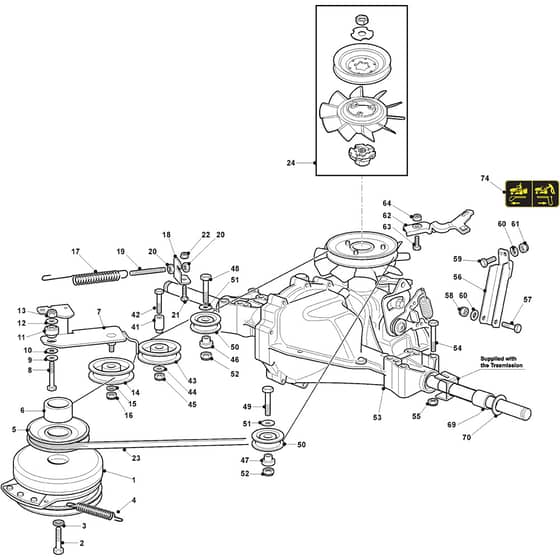

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2021-2022

Model Type - NJNS 102 Hydro

Art.N - 2T1710381/ST1

Engine Model - GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118399062/1 Available to backorder	Electromagnetic Clutch	£341.58 £284.65
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO122430217/0 In stock	Tension Spring	£9.06 £7.55
5	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
6	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
7	MO382318217/1 Available to backorder	Lever	£28.58 £23.82
10	MO327670055/0 Available to backorder	Antifriction Washer	£1.97 £1.64
11	MO125510087/0 Available to backorder	Pin	£5.06 £4.22
14	MO125601554/0 In stock	Pulley	£25.68 £21.40
17	MO125430260/1 Available to backorder	Spring	£6.47 £5.39
18	MO325755049/0 Available to backorder	Bracket	£3.10 £2.58
19	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
22	MO112293201/0 In stock	Nut	£1.69 £1.41
23	MO135062019/0 In stock	Belt	£41.75 £34.79
24	MO118802723/0 Available to backorder	Fan Kit	£161.89 £134.91
41	MO125160081/0 Available to backorder	Pin	£8.02 £6.68
42	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
43	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
47	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
49	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
50	MO382601522/0 In stock	Pulley	£23.92 £19.93
51	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
53	MO118400919/2 Available to backorder	Hydrostatic Transaxle - Hydrogear (T2-Adbf-2X3C-17X1)	£892.08 £743.40
54	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
56	MO382785201/0 Available to backorder	Support	£17.32 £14.43
57	MO112691700/0 In stock	Screw	£1.82 £1.52
59	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
60	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
61	MO112155000/0 In stock	Nut	£1.55 £1.29
62	MO325318257/0 Available to backorder	Lever	£6.05 £5.04
63	MO112791213/1 In stock	Screw	£1.55 £1.29
64	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
69	MO125160058/1 Available to backorder	Spacer	£4.08 £3.40
70	MO125670005/2 In stock	Washer	£4.08 £3.40
74	MO114361451/0 Available to backorder	Dump Valve Decal Label [Hydro]	£3.10 £2.58
