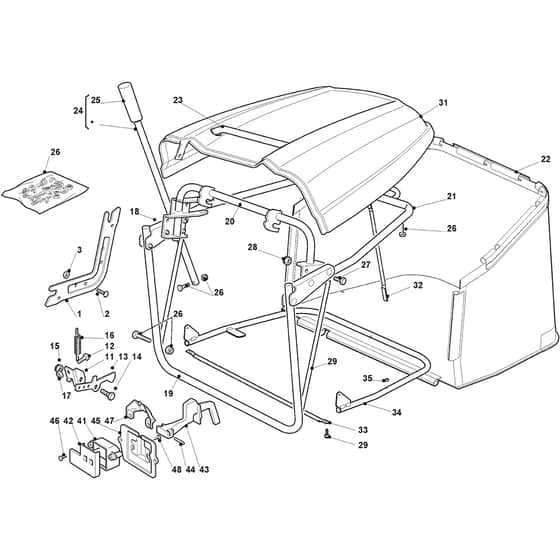

ESTATE 5102 HW - 2020 - 2T1750481/ST1P - Stiga Ride On Mower Grasscatcher Diagram

Description

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2020

Model Type - NJNS 102 Hydro

Art.N - 2T1750481/ST1P

Engine Model - ST 600 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325785275/0 Available to backorder	Support	£11.95 £9.96
2	MO9897-0820-16 Available to backorder	Screw From 01-9-2017	£1.97 £1.64
2	MO112818690/0 Available to backorder	Screw To 31-8-2017	£1.61 £1.34
3	MO112293201/0 In stock	Nut	£1.69 £1.41
11	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
12	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
13	MO325774315/1 Available to backorder	Bracket	£3.94 £3.28
14	MO125510080/2 Available to backorder	Pin	£1.40 £1.17
15	MO112292102/0 In stock	Nut	£1.69 £1.41
16	MO122450432/0 In stock	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
18	MO382774251/0 Available to backorder	Bracket	£8.02 £6.68
19	MO382800099/0 Available to backorder	Grasscatcher Frame	£30.97 £25.81
20	MO382800103/0 Available to backorder	Grasscatcher Hooking Frame	£78.84 £65.70
21	MO382800101/1 Available to backorder	Front Frame	£78.06 £65.05
22	MO182105919/0 Available to backorder	Grasscatcher Black with STIGA Logo	£175.97 £146.64
23	MO382394003/0 Available to backorder	Front Handle	£21.12 £17.60
24	MO382869023/0 Available to backorder	Rod	£33.79 £28.16
25	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
26	MO382180138/0 Available to backorder	Screw Outfit	£17.60 £14.67
27	MO112815240/0 Available to backorder	Screw	£2.06 £1.72
29	MO325650115/0 Available to backorder	Stiffening	£12.67 £10.56
31	MO325110319/0 Available to backorder	Yellow Grass-Catcher Cover Yellow	£104.18 £86.82
32	MO325033049/1 Available to backorder	Reinforcement Rod	£17.23 £14.36
33	MO382650043/0 Available to backorder	Lower Stiffening	£20.77 £17.31
34	MO382800173/0 Available to backorder	Frame	£71.80 £59.83
35	MO112154510/0 In stock	Nut	£1.55 £1.29
41	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.91 £3.26
42	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
43	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
44	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
45	MO325785272/1 Available to backorder	Micro Protection From S.N 415573	£2.12 £1.77
46	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
47	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
48	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.55 £1.29
