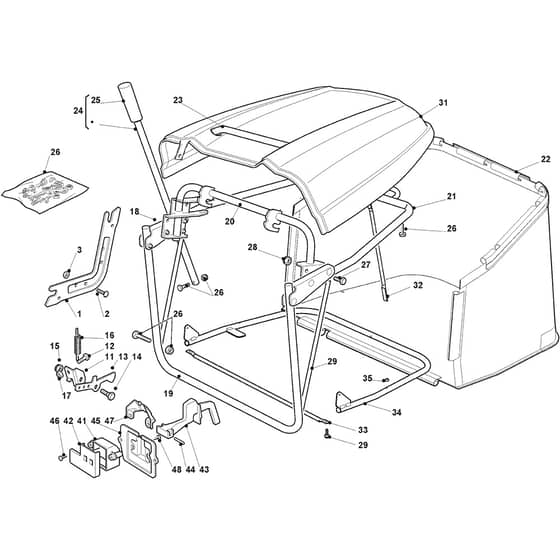

ESTATE 5102 HW - 2019 - 2T1720681/STX - Stiga Ride On Mower Grasscatcher Diagram

Description

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2019

Model Type - NJS 102 Hydro

Art.N - 2T1720681/STX

Engine Model - FS481V

	Part No.	Details
1	MO325785275/0 Available to backorder	Support	£11.95 £9.96
2	MO112818690/0 In stock	Screw To 31-8-2017	£1.55 £1.29
2	MO9897-0820-16 Available to backorder	Screw From 01-9-2017	£1.97 £1.64
3	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
12	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
13	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
14	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO122450432/0 Available to backorder	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
18	MO382774251/0 Available to backorder	Bracket	£8.00 £6.67
19	MO382800099/0 Available to backorder	Grasscatcher Frame	£30.98 £25.82
20	MO382800103/0 Available to backorder	Grasscatcher Hooking Frame	£78.85 £65.71
21	MO382800101/1 Available to backorder	Front Frame	£78.06 £65.05
22	MO182105919/0 Available to backorder	Grasscatcher Black with STIGA Logo	£175.97 £146.64
23	MO382394003/0 Available to backorder	Front Handle	£21.12 £17.60
48	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
