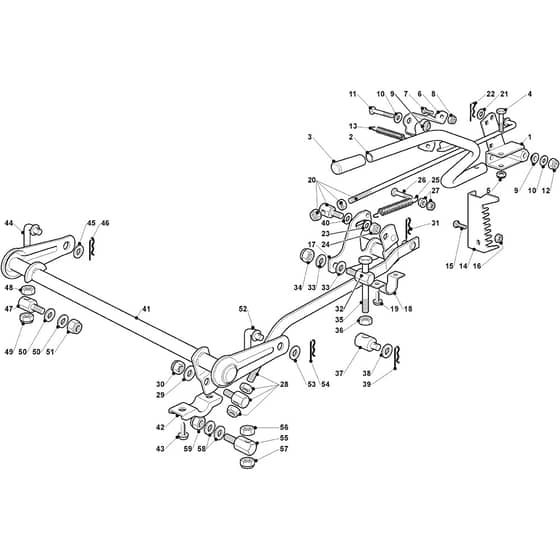

ESTATE 5102 HW - 2019 - 2T1720681/STX - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2019

Model Type - NJS 102 Hydro

Art.N - 2T1720681/STX

Engine Model - FS481V

	Part No.	Details
1	MO382774249/0 Available to backorder	Clamp	£27.31 £22.76
2	MO382318219/1 Available to backorder	Lever	£45.04 £37.53
3	MO325394535/0 Available to backorder	Knob	£3.92 £3.27
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO325650113/0 Available to backorder	Plate	£4.93 £4.11
9	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO125430259/0 Available to backorder	Spring	£4.78 £3.98
14	MO325735511/0 Available to backorder	Sector	£7.02 £5.85
15	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
16	MO112293201/0 In stock	Nut	£1.70 £1.42
17	MO382000387/0 In stock	Rear Lifting Deck Axle Assy	£28.14 £23.45
18	MO325547041/1 Available to backorder	Plate	£5.34 £4.45
19	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
20	MO382000618/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£43.75 £36.46
59	MO112156602/0 In stock	Low Self-Locking Nut M10 Uni7474 Acc.6S	£1.39 £1.16
