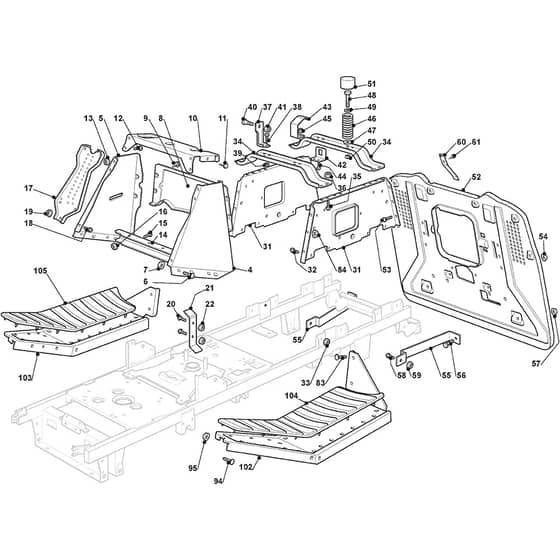

ESTATE 5102 HW - 2018-2019 - 2T1720681/ST1 - Stiga Ride On Mower Chassis High End Diagram

Name: ESTATE 5102 HW - 2018-2019 - 2T1720681/ST1 - Stiga Ride On Mower Chassis High End Diagram
SKU: estate_5102_hw_2t1720681_st1_chassis_high_end-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 5102 HW - 2018-2019 - 2T1720681/ST1 - Stiga Ride On Mower Chassis High End Diagram

Description

Stiga ESTATE 5102 HW Parts Diagram

Product Name - ESTATE 5102 HW

Model Year - 2018-2019

Model Type - NJNS 102 Hydro

Art.N - 2T1720681/ST1

Engine Model - FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325785243/1 Available to backorder	Left Dashboard Support	£29.56 £24.63
5	MO325785245/0 Available to backorder	Right Dashboard Support	£22.25 £18.54
8	MO382785151/2 Available to backorder	Rear Dashboard Support	£16.82 £14.02
10	MO325785255/0 Available to backorder	Central Dashboard Support	£8.23 £6.86
11	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
14	MO325785241/0 Available to backorder	Support	£7.13 £5.94
15	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
17	MO382785153/1 Available to backorder	Front Dashboard Support To S.N 19KA1RON001015	£15.42 £12.85
17	MO382785153/2 Available to backorder	Front Dashboard Support From S.N 19KA1RON001016	£15.28 £12.73
20	MO112793102/0 In stock	Screw	£1.55 £1.29
21	MO325785499/0 Available to backorder	Support	£6.05 £5.04
31	MO325785249/0 Available to backorder	Seat Support	£33.79 £28.16
32	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
33	MO112292102/0 In stock	Nut	£1.69 £1.41
34	MO382785309/0 Available to backorder	Seat Support From S.N 19KA1RON001016	£12.32 £10.27
34	MO325785257/1 Available to backorder	Seat Support To S.N 19KA1RON001015	£12.46 £10.38
35	MO112818690/0 Available to backorder	Screw To 31-8-2017	£1.61 £1.34
35	MO9897-0820-16 Available to backorder	Screw From 01-9-2017	£1.97 £1.64
37	MO325755039/0 Available to backorder	Bracket	£7.73 £6.44
38	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
39	MO112293201/0 In stock	Nut	£1.69 £1.41
40	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
41	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
42	MO325755043/0 Available to backorder	Bracket	£2.26 £1.88
43	MO325430253/0 Available to backorder	Micro Seat Protect Spring	£5.21 £4.34
44	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
105	MO325110326/0 Available to backorder	Right Footboard Cover	£19.85 £16.54
