ESTATE 4092 H - 2020-2022 - 2T0430481/ST1P - Stiga Ride On Mower Transmission Diagram

Description

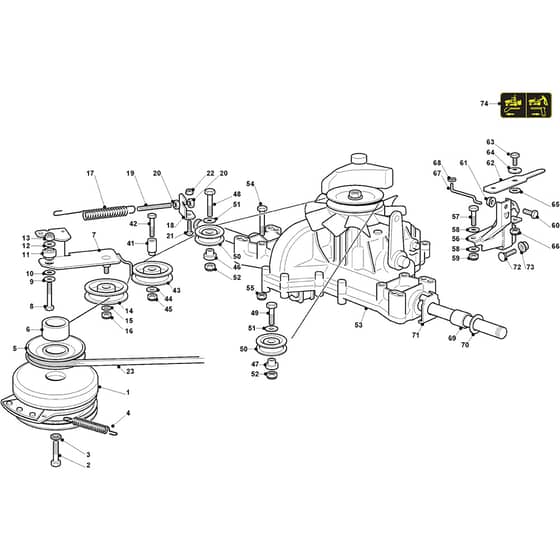

Stiga ESTATE 4092 H Parts Diagram

Product Name - ESTATE 4092 H

Model Year - 2020-2022

Model Type - NJNS 92 Hydro

Art.N - 2T0430481/ST1P

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118399063/1 Available to backorder	Electromagnetic Clutch	£309.84 £258.20
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO122430217/0 In stock	Tension Spring	£9.06 £7.55
5	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
6	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
7	MO382318217/1 Available to backorder	Lever From S.N 314004	£28.58 £23.82
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
10	MO327670055/0 Available to backorder	Antifriction Washer	£1.97 £1.64
11	MO125510087/0 Available to backorder	Pin	£5.06 £4.22
14	MO125601554/0 In stock	Pulley	£25.68 £21.40
15	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO125430260/1 Available to backorder	Spring From S.N 314004	£6.47 £5.39
18	MO325755049/0 Available to backorder	Bracket	£3.10 £2.58
19	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
23	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
41	MO125160080/0 Available to backorder	Pin	£8.02 £6.68
43	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
46	MO125160024/2 In stock	Spacer To 15-4-2019	Was £8.29 £6.91 Special Price £5.27 £4.39
47	MO125160030/2 Available to backorder	Left Spacer To 15-4-2019	£6.47 £5.39
47	MO127160064/0 Available to backorder	Spacer From 16-4-2019	£5.06 £4.22
48	MO112691400/0 Available to backorder	Screw To 15-4-2019	£1.55 £1.29
50	MO382601522/0 In stock	Pulley From 16-4-2019	£23.92 £19.93
51	MO112523070/0 Available to backorder	Washer From 16-4-2019	£1.55 £1.29
51	MO122671653/0 Available to backorder	Washer To 15-4-2019	£1.55 £1.29
53	MO118400960/0 Available to backorder	Hydrostatic Transaxle - Tuff Torq (K46S) K46S - Order this code. Not directly the replacement	£1,394.03 £1,161.69
54	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
55	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
56	MO382785149/0 Available to backorder	Support	£24.78 £20.65
57	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
58	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
62	MO325318157/0 Available to backorder	Lever	£5.35 £4.46
63	MO112793102/0 In stock	Screw	£1.55 £1.29
64	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
65	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
67	MO125033033/1 Available to backorder	Rod	£2.12 £1.77
68	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
69	MO125160031/0 Available to backorder	Spacer	£3.38 £2.82
70	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
71	MO325670025/0 Available to backorder	Washer	£4.08 £3.40
72	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
73	MO112293201/0 In stock	Nut	£1.69 £1.41
74	MO114361451/0 Available to backorder	Dump Valve Decal Label [Hydro]	£3.10 £2.58
