ESTATE 4092 H - 2020-2022 - 2T0430481/ST1P - Stiga Ride On Mower Guards Diagram

Description

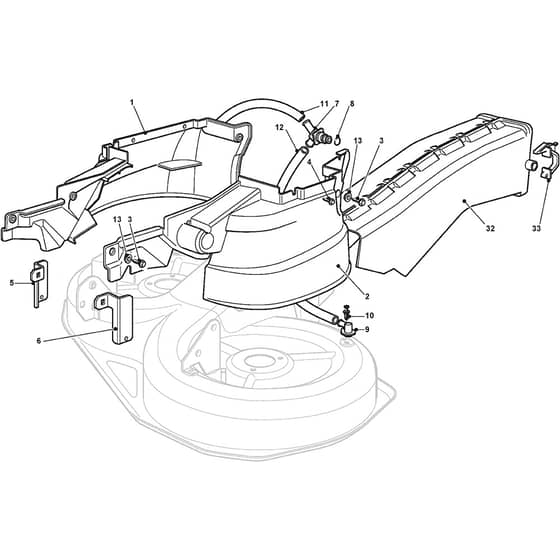

Stiga ESTATE 4092 H Parts Diagram

Product Name - ESTATE 4092 H

Model Year - 2020-2022

Model Type - NJNS 92 Hydro

Art.N - 2T0430481/ST1P

Engine Model - ST 500

	Part No.	Details
2	MO325060122/1 Available to backorder	Left Belt Protection Carter	£49.26 £41.05
3	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
4	MO112728535/0 Available to backorder	Screw	£1.55 £1.29
5	MO325774381/0 Available to backorder	Bracket	£4.37 £3.64
6	MO325774383/0 Available to backorder	Bracket	£4.37 £3.64
7	MO325033066/0 Available to backorder	Water Hose Connection	£3.38 £2.82
8	MO112000970/0 In stock	Circlip Ø12	£1.55 £1.29
9	MO325033065/0 Available to backorder	Water Hose Connection	£2.40 £2.00
10	MO112500030/0 In stock	Rivet	£1.55 £1.29
11	MO325869069/0 Available to backorder	Washing Tube	£20.14 £16.78
12	MO325869068/0 Available to backorder	Washing Tube	£8.72 £7.27
13	MO325160039/0 Available to backorder	Spacer	£1.63 £1.36
32	MO382108008/1 In stock	Conveyor	£67.57 £56.31
33	MO325774373/0 In stock	Release Clamp	£2.94 £2.45
