ESTATE 4092 H - 2018-2022 - 2T0430481/ST1 - Stiga Ride On Mower Seat Diagram

Description

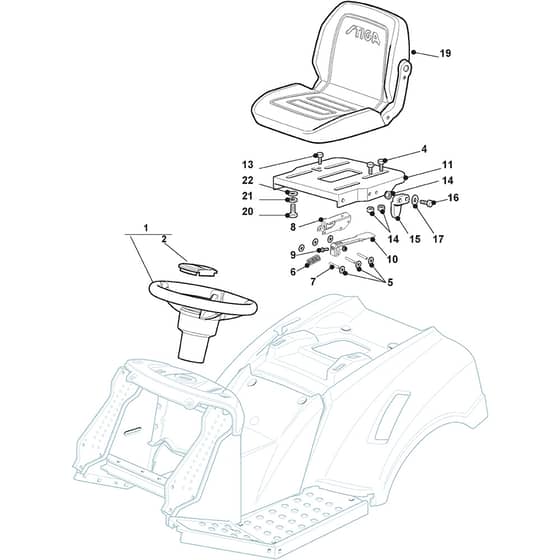

Stiga ESTATE 4092 H Parts Diagram

Product Name - ESTATE 4092 H

Model Year - 2018-2022

Model Type - NJNS 92 Hydro

Art.N - 2T0430481/ST1

Engine Model - Stiga 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325961222/1 Available to backorder	Steering Wheel	£295.63 £246.36
2	MO325580508/0 Available to backorder	Steering Plate Cover	£5.96 £4.97
5	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
6	MO125430285/0 Available to backorder	Spring	£6.90 £5.75
7	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
8	MO325774575/0 Available to backorder	Fulcrum Clamp	£9.00 £7.50
10	MO325318327/0 Available to backorder	Lever To S.N 419122	£9.35 £7.79
10	MO382318315/0 Available to backorder	Lever From S.N 419123	£10.56 £8.80
11	MO325547033/2 Available to backorder	Seat Plate	£39.42 £32.85
13	MO112789000/0 Available to backorder	Screw To 31-8-2017	£1.55 £1.29
13	MO112735661/0 Available to backorder	Screw From 01-9-2017	£1.55 £1.29
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO382735810/1 Available to backorder	Seat Assy To 31-8-2015	£299.66 £249.72
19	MO125722481/0 Available to backorder	Seat From 01-9-2015	£365.70 £304.75
20	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer M8 8.4 X 24 X 2	£1.55 £1.29
