Estate 384e - 2023 - 2T2200481/ST2S - Stiga Ride On Mower Bodywork Diagram

Description

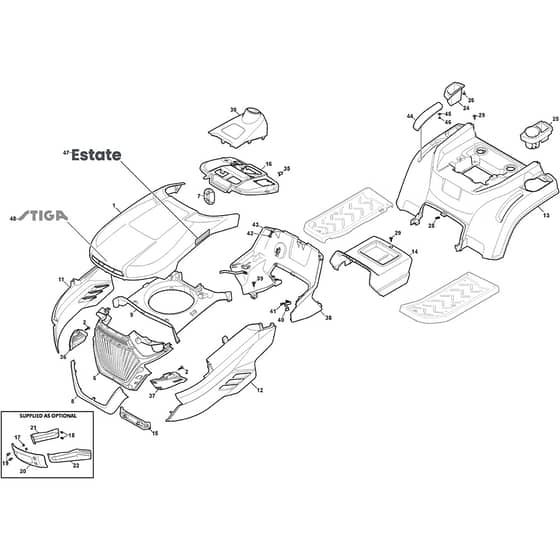

Stiga Estate 384e Parts Diagram

Product Name - Estate 384e

Model Year - 2023

Model Type - MPST 84 Li 48 V1

Art.N - 2T2200481/ST2S

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076984/0 Available to backorder	Engine Hood. Yellow	£121.07 £100.89
2	MO112728706/0 In stock	Screw	£1.55 £1.29
6	MO325076997/0 Available to backorder	Frontal Bonnet	£61.93 £51.61
7	MO325207296/0 Available to backorder	Cover	£6.34 £5.28
8	MO325076998/1 Available to backorder	Lower Hood. Front Grey NCS8000N From S.N 22GA3RON000468	£15.43 £12.86
9	MO325108109/0 Available to backorder	Air Intake Grill	£39.42 £32.85
11	MO325207283/0 Available to backorder	Bonnet Right Side Cover. Grey To S.N 22GA3RON000467	£56.02 £46.68
11	MO325207306/0 Available to backorder	Bonnet Right Side Cover. Grey From S.N 22GA3RON000468	£57.35 £47.79
12	MO325207307/0 Available to backorder	Bonnet Left Side Cover. Grey From S.N 22GA3RON000468	£55.96 £46.63
12	MO325207284/0 Available to backorder	Bonnet Left Side Cover. Grey To S.N 22GA3RON000467	£56.02 £46.68
13	MO325110438/2 Available to backorder	Yellow Wheels Cover From S.N 22GA3RON000468	£144.52 £120.43
14	MO325110463/0 Available to backorder	Grey Central Cover Grey NCS8000N To S.N 22KA3RON008537	£34.94 £29.12
14	MO325110541/0 In stock	Black Central Cover Grey NCS8000N From S.N 22KA3RON008538	£38.83 £32.36
15	MO325785551/1 Available to backorder	Engine Hood Support	£10.42 £8.68
16	MO325120293/0 Available to backorder	Dashboard	£30.97 £25.81
17	MO112155000/0 In stock	Nut	£1.55 £1.29
19	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO382263501/0 Available to backorder	Bumper	£35.20 £29.33
21	MO382785255/0 Available to backorder	Right Support	£30.97 £25.81
22	MO382785257/0 Available to backorder	Left Support	£30.97 £25.81
24	MO325207198/1 Available to backorder	Cover From S.N 22KA3RON007132	£8.18 £6.82
24	MO325207198/0 Available to backorder	Cover To S.N 22KA3RON007132	£8.87 £7.39
25	MO325207199/0 Available to backorder	Cover To S.N 22KA3RON007132	£11.54 £9.62
25	MO325207199/1 Available to backorder	Cover From S.N 22KA3RON007132	£11.54 £9.62
28	MO112437506/0 Available to backorder	Plate	£2.53 £2.11
30	MO325120291/0 Available to backorder	Dashboard	£17.04 £14.20
35	MO325260003/0 Available to backorder	Grommet	£1.55 £1.29
36	MO382185523/0 Available to backorder	Right Lamp Light Assy	£42.23 £35.19
37	MO382185524/0 Available to backorder	Left Lamp Light Assy	£42.23 £35.19
38	MO325785298/0 Available to backorder	Dashboard Support	£29.56 £24.63
39	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
40	MO325270325/0 Available to backorder	Guide	£4.78 £3.98
41	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
42	MO112735406/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523040/0 In stock	Washer	£1.49 £1.24
44	MO325207203/0 Available to backorder	Cover To S.N 22KA3RON006218	£4.66 £3.88
44	MO325207203/1 Available to backorder	Cover From S.N 22KA3RON006219	£4.50 £3.75
45	MO112523050/0 In stock	Washer	£1.55 £1.29
46	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
47	MO114372972/0 Available to backorder	Denomination Label "Estate"	£9.16 £7.63
48	MO114367495/1 Available to backorder	Stiga Logo Label	£11.60 £9.67
