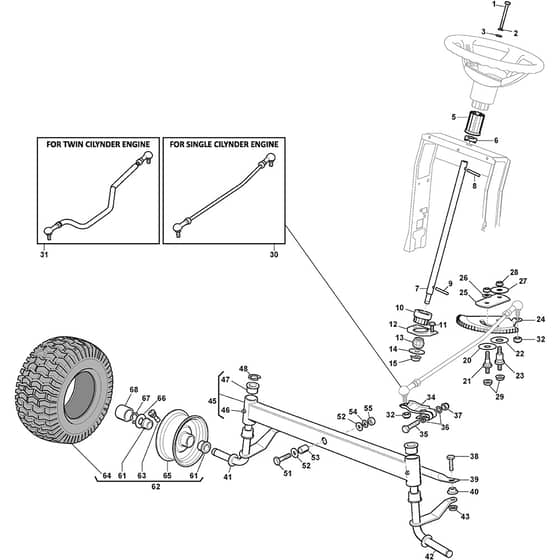

ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Steering Diagram

Name: ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Steering Diagram
SKU: estate_384_se_2t2105481_st1_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Steering Diagram

Description

Stiga ESTATE 384 SE Parts Diagram

Product Name - ESTATE 384 SE

Model Year - 2024-2025

Model Type - MPST 84 Hydro

Art.N - 2T2105481/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692100/0 Available to backorder	Screw	£2.81 £2.34
2	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
5	MO382785304/0 Available to backorder	Support	£27.46 £22.88
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520018/0 Available to backorder	Steering Column	£23.92 £19.93
8	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
9	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943054/0 Available to backorder	Screw	£1.82 £1.52
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.68 £2.23
14	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
15	MO112436030/0 In stock	Plate	£1.82 £1.52
20	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
21	MO125510173/0 Available to backorder	Pin	£1.97 £1.64
22	MO125670023/0 In stock	Washer	£1.82 £1.52
23	MO125510165/0 In stock	Pin	£4.78 £3.98
24	MO325735519/0 In stock	Steering Sector	£35.20 £29.33
25	MO325547233/0 Available to backorder	Plate	£3.52 £2.93
26	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
27	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
29	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
32	MO112156602/0 In stock	Nut	£1.40 £1.17
34	MO382318323/0 In stock	Steering Control Lever	£7.61 £6.34
35	MO112692395/2 In stock	Screw	£3.24 £2.70
36	MO112521360/0 In stock	Washer	£1.55 £1.29
68	MO322110240/1 Available to backorder	Stiga Hub Cap Black To S.N 24KA3RON013586	£1.82 £1.52
