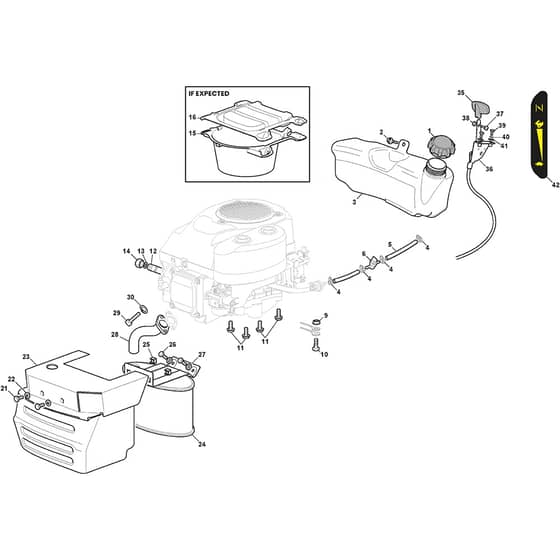

ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Engine Diagram

Name: ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Engine Diagram
SKU: estate_384_se_2t2105481_st1_engine-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 384 SE - 2024-2025 - 2T2105481/ST1 - Stiga Ride On Mower Engine Diagram

Description

Stiga ESTATE 384 SE Parts Diagram

Product Name - ESTATE 384 SE

Model Year - 2024-2025

Model Type - MPST 84 Hydro

Art.N - 2T2105481/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
3	MO325735126/1 Available to backorder	Tank From S.N DD305062	£46.46 £38.72
4	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.82 £1.52
4	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
5	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
6	MO118566119/0 Available to backorder	Shut Out Valve From S.N 21GA3RON003919	£14.64 £12.20
9	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
10	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
11	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
12	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.17 £6.81
13	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
14	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
15	MO325108044/1 Available to backorder	Conveyor if foreseen in assortment	£11.12 £9.27
16	MO325263302/1 Available to backorder	Air Intake Grill if foreseen in assortment To S.N 21FA3RON003869	£15.91 £13.26
16	MO325263318/0 Available to backorder	Air Intake Grill if foreseen in assortment From S.N 21GA3RON001381	£12.82 £10.68
42	MO114363697/0 Available to backorder	Throttle Decal	£1.55 £1.29
