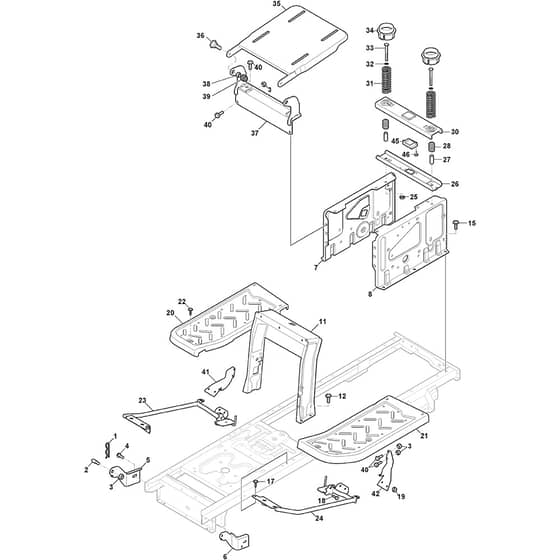

ESTATE 384 - 2022-2025 - 2T2100481/ST1 - Stiga Ride On Mower Frame Diagram

Description

Stiga ESTATE 384 Parts Diagram

Product Name - ESTATE 384

Model Year - 2022-2025

Model Type - MPST 84 Hydro

Art.N - 2T2100481/ST1

Engine Model - ST 450

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
5	MO325547225/0 Available to backorder	Right Plate	£6.34 £5.28
6	MO325547227/0 Available to backorder	Left Plate	£6.76 £5.63
7	MO325785331/2 Available to backorder	Right Seat Support	£32.26 £26.88
8	MO325785333/2 Available to backorder	Left Seat Support	£32.26 £26.88
11	MO382785169/1 Available to backorder	Steering Column Support	£57.71 £48.09
19	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325500050/0 Available to backorder	Right Footboard	£23.52 £19.60
21	MO325500051/1 Available to backorder	Left Footboard	£24.44 £20.37
22	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
23	MO382785223/1 Available to backorder	Footboard Support	£36.59 £30.49
24	MO382785221/1 Available to backorder	Footboard Support	£36.59 £30.49
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
30	MO325820113/0 Available to backorder	Seat Switch Support Bar	£9.58 £7.98
31	MO125430264/1 Available to backorder	Spring	£9.37 £7.81
32	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO325600148/0 Available to backorder	Hood	£1.40 £1.17
35	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
36	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
37	MO382820151/2 Available to backorder	Seat Support To S.N 22JA3RON004240	£24.07 £20.06
37	MO382820151/3 Available to backorder	Seat Support From S.N 22JA3RON004241	£23.35 £19.46
38	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
39	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
40	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
41	MO325650155/2 Available to backorder	Support	£10.42 £8.68
42	MO325650157/2 Available to backorder	Support	£10.84 £9.03
45	MO325785379/1 Available to backorder	Support	£1.55 £1.29
46	MO112728697/0 In stock	Self-Tapping Screw Pt Torx Wn1451 K50X16	£1.55 £1.29
