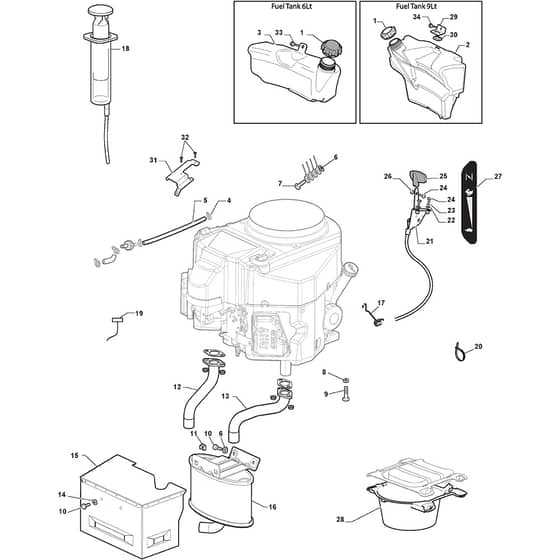

ESTATE 3398 HW - 2019-2021 - 2T2640281/ST1 - Stiga Ride On Mower B&S Engine Diagram

Name: ESTATE 3398 HW - 2019-2021 - 2T2640281/ST1 - Stiga Ride On Mower B&S Engine Diagram
SKU: estate_3398_hw_2t2640281_st1_b_s_engine-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 3398 HW - 2019-2021 - 2T2640281/ST1 - Stiga Ride On Mower B&S Engine Diagram

Description

Stiga ESTATE 3398 HW Parts Diagram

Product Name - ESTATE 3398 HW

Model Year - 2019-2021

Model Type - MPST 98 Hydro

Art.N - 2T2640281/ST1

Engine Model - Intek 7200 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO325735132/0 Available to backorder	Fuel Tank [9 Litres] 9Lt	£61.38 £51.15
3	MO325735126/1 Available to backorder	Tank 6Lt	£46.46 £38.72
4	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
5	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
6	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
8	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
10	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
11	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
12	MO118738274/0 Available to backorder	Right Exhaust Connection Tube	£20.40 £17.00
13	MO118738275/0 Available to backorder	Left Exhaust Connection Tube	£20.40 £17.00
14	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO382598071/1 Available to backorder	Muffler Protection	£57.71 £48.09
16	MO182750003/0 Available to backorder	Muffler Assy	£251.32 £209.43
17	MO125430292/0 Available to backorder	Spring	£1.69 £1.41
18	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
19	MO125090003/0 In stock	Choke Control	£19.99 £16.66
20	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
21	MO182000201/2 Available to backorder	Accelerator	£27.59 £22.99
22	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
23	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
24	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
25	MO325394531/0 Available to backorder	Knob	£1.82 £1.52
26	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
27	MO114364617/0 Available to backorder	Throttle Label	£1.55 £1.29
28	MO325108045/1 Available to backorder	Conveyor if foreseen in assortment	£11.12 £9.27
29	MO325755085/0 Available to backorder	Angle Bracket	£4.78 £3.98
31	MO325774701/0 Available to backorder	Bracket	£17.60 £14.67
32	MO9943-0516-16 In stock	Screw	£1.22 £1.02
33	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
34	MO127943051/0 Available to backorder	Screw D.6.3 X 13	£1.74 £1.45
