ESTATE 3084 H - 2014-2018 - 2T2110281/14 - Stiga Ride On Mower Frame Diagram

Description

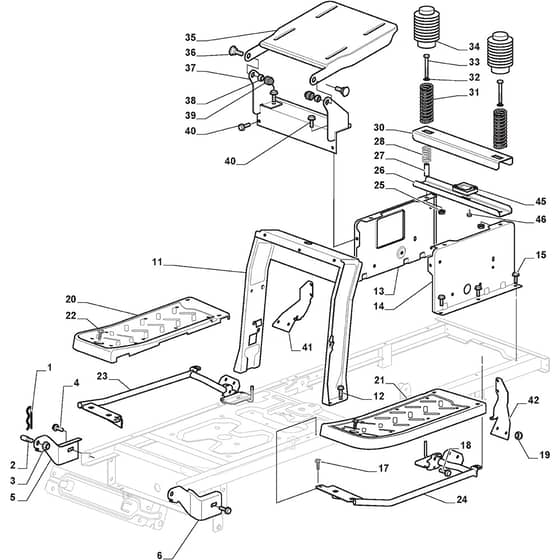

Stiga ESTATE 3084 H Parts Diagram

Product Name - ESTATE 3084 H

Model Year - 2014-2018

Model Type - MPS 84 Hydro

Art.N - 2T2110281/14

Engine Model - PowerBuilt 3130 AVS

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
2	MO125510169/1 Available to backorder	Pin From S.N 19DA3RON003315	£2.40 £2.00
5	MO325547225/0 Available to backorder	Right Plate	£6.32 £5.27
6	MO325547227/0 Available to backorder	Left Plate	£6.77 £5.64
11	MO382785169/1 Available to backorder	Steering Column Support	£57.71 £48.09
13	MO325785331/2 Available to backorder	Right Seat Support	£32.24 £26.87
14	MO325785333/2 Available to backorder	Left Seat Support	£32.24 £26.87
18	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
19	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325500041/1 Available to backorder	Right Footboard	£37.79 £31.49
21	MO325500043/1 Available to backorder	Left Footboard	£42.22 £35.18
22	MO112735599/0 In stock	Screw	£1.55 £1.29
23	MO382785223/0 Available to backorder	Footboard Support	£43.63 £36.36
24	MO382785221/0 Available to backorder	Footboard Support	£36.59 £30.49
25	MO112293201/0 In stock	Nut	£1.70 £1.42
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer To 31-8-2014	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.39 £1.16
46	MO112728686/0 In stock	Self-Tapping Screw Ka50 X 16	£1.55 £1.29
