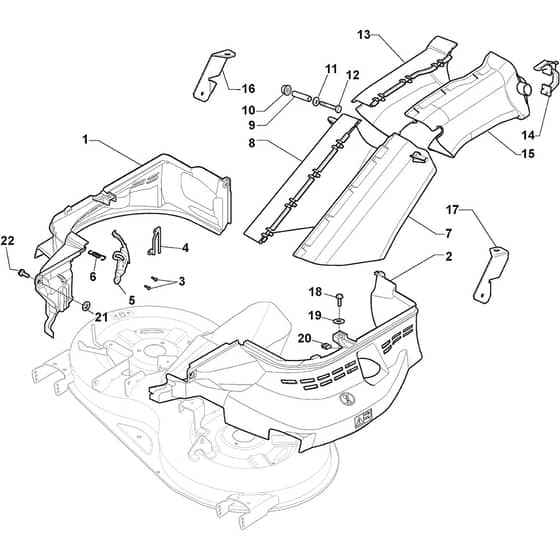

ESTATE 2398 HW - 2020-2021 - 2T2630481/ST1 - Stiga Ride On Mower Belt Protection Diagram

Name: ESTATE 2398 HW - 2020-2021 - 2T2630481/ST1 - Stiga Ride On Mower Belt Protection Diagram
SKU: estate_2398_hw_2t2630481_st1_belt_protection-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 2398 HW - 2020-2021 - 2T2630481/ST1 - Stiga Ride On Mower Belt Protection Diagram

Description

Stiga ESTATE 2398 HW Parts Diagram

Product Name - ESTATE 2398 HW

Model Year - 2020-2021

Model Type - MPST 98 Hydro

Art.N - 2T2630481/ST1

Engine Model - ST 550 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325060174/0 Available to backorder	Conveyor	£45.04 £37.53
2	MO325060175/0 Available to backorder	Conveyor	£45.04 £37.53
3	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
4	MO382270309/0 Available to backorder	Bracket	£3.79 £3.16
5	MO325547346/0 Available to backorder	Bracket	£6.05 £5.04
6	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
7	MO325108065/0 In stock	Conveyor	£18.43 £15.36
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO125160109/0 Available to backorder	Spacer From S.N 19FA3RON000413	£1.69 £1.41
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
12	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
13	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
14	MO325774499/0 Available to backorder	Clamp	£2.44 £2.03
15	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
16	MO325774527/0 Available to backorder	Clamp	£3.24 £2.70
17	MO325774529/0 Available to backorder	Clamp	£3.67 £3.06
18	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
19	MO112523020/0 In stock	Washer	£1.55 £1.29
20	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
21	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
22	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
