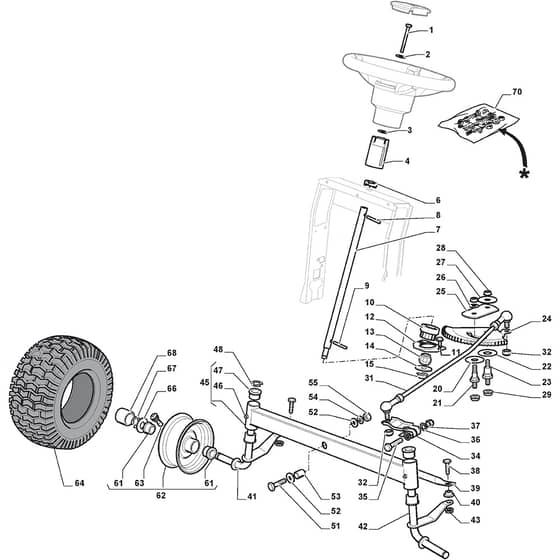

ESTATE 2084 H - 2015-2018 - 2T2120481/15 - Stiga Ride On Mower Steering Diagram

Name: ESTATE 2084 H - 2015-2018 - 2T2120481/15 - Stiga Ride On Mower Steering Diagram
SKU: estate_2084_h_2t2120481_15_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 2084 H - 2015-2018 - 2T2120481/15 - Stiga Ride On Mower Steering Diagram

Description

Stiga ESTATE 2084 H Parts Diagram

Product Name - ESTATE 2084 H

Model Year - 2015-2018

Model Type - MPS 84 Hydro

Art.N - 2T2120481/15

Engine Model - Stiga 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
2	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
3	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
4	MO382785266/0 Available to backorder	Support	£23.51 £19.59
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520007/0 Available to backorder	Steering Column	£19.70 £16.42
8	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
9	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.68 £2.23
14	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
15	MO112436030/0 In stock	Plate	£1.82 £1.52
20	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
21	MO125510173/0 Available to backorder	Pin From S.N 19GA3RON000127	£1.97 £1.64
22	MO125670023/0 In stock	Washer	£1.82 £1.52
23	MO125510165/0 In stock	Pin From S.N 19FA3RON000287	£4.78 £3.98
24	MO325735519/0 In stock	Steering Sector	£35.20 £29.33
25	MO325547233/0 Available to backorder	Plate	£3.52 £2.93
26	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
27	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
29	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
31	MO382000566/2 In stock	Steering Wheels Rod Assy	£36.59 £30.49
34	MO382318323/0 In stock	Steering Control Lever From S.N 19FA3RON000708	£7.61 £6.34
35	MO112692395/2 In stock	Screw From S.N 19FA3RON000708	£3.24 £2.70
35	MO112692390/0 Available to backorder	Screw To S.N 19FA3RON000707	£1.48 £1.23
36	MO112521360/0 In stock	Washer no more needed To S.N 19FA3RON000707	£1.55 £1.29
37	MO112156602/0 In stock	Nut To S.N 19FA3RON000707	£1.40 £1.17
37	MO112155020/0 Available to backorder	Nut From S.N 19FA3RON000708	£1.69 £1.41
38	MO125510103/0 Available to backorder	Pin	£1.55 £1.29
39	MO325840029/0 In stock	Tie Rod	£10.70 £8.92
40	MO325038007/0 In stock	Bushing	£1.55 £1.29
41	MO382230373/1 In stock	Right Stub Axle From S.N 19FA3RON000055	£56.32 £46.93
42	MO382230375/1 In stock	Left Stub Axle From S.N 19FA3RON000103	£56.32 £46.93
43	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO382034030/0 Available to backorder	Equalizer With Bush And Lubricator	£107.70 £89.75
46	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
47	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
48	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
51	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
52	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
70	MO382180124/0 Available to backorder	Screw Assembly Kit	£26.04 £21.70
