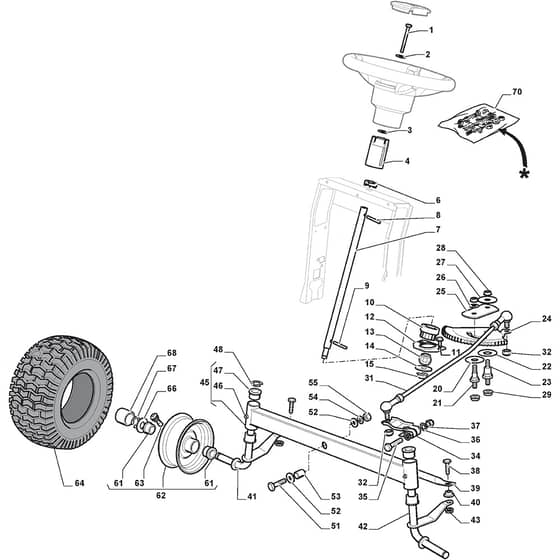

ESTATE 2084 - 2018 - 2T2000481/ST1 - Stiga Ride On Mower Steering Diagram

Description

Stiga ESTATE 2084 Parts Diagram

Product Name - ESTATE 2084

Model Year - 2018

Model Type - MPS 84

Art.N - 2T2000481/ST1

Engine Model - Stiga 7050

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
2	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
3	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
4	MO382785266/0 Available to backorder	Support	£23.51 £19.59
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520007/0 Available to backorder	Steering Column	£19.70 £16.42
8	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
9	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.68 £2.23
14	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
15	MO112436030/0 In stock	Plate	£1.82 £1.52
20	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
21	MO125510173/0 Available to backorder	Pin From S.N 19GA3RON000127	£1.97 £1.64
22	MO125670023/0 In stock	Washer	£1.82 £1.52
23	MO125510165/0 In stock	Pin From S.N 19FA3RON000287	£4.78 £3.98
24	MO325735519/0 In stock	Steering Sector	£35.20 £29.33
25	MO325547233/0 Available to backorder	Plate	£3.52 £2.93
26	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
27	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
29	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
31	MO382000566/2 In stock	Steering Wheels Rod Assy	£36.59 £30.49
32	MO112156602/0 In stock	Nut	£1.40 £1.17
34	MO382318323/0 In stock	Steering Control Lever From S.N 19FA3RON000708	£7.61 £6.34
35	MO112692390/0 Available to backorder	Screw To S.N 19FA3RON000707	£1.48 £1.23
35	MO112692395/2 In stock	Screw From S.N 19FA3RON000708	£3.24 £2.70
70	MO382180124/0 Available to backorder	Screw Assembly Kit	£26.04 £21.70
