ESTATE 2084 - 2018 - 2T2000481/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

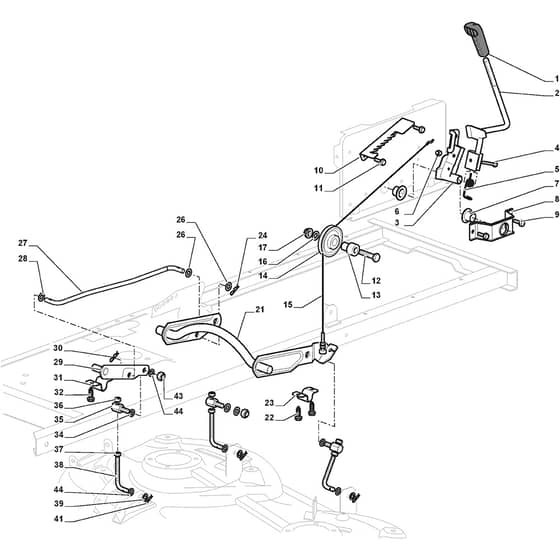

Stiga ESTATE 2084 Parts Diagram

Product Name - ESTATE 2084

Model Year - 2018

Model Type - MPS 84

Art.N - 2T2000481/ST1

Engine Model - Stiga 7050

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318255/0 Available to backorder	Lever	£13.94 £11.62
3	MO382318231/1 Available to backorder	Lifting Axle Assy From S.N 20JA3RON003035	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 In stock	Screw	£1.55 £1.29
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 In stock	Pulley	£2.81 £2.34
15	MO382004620/0 In stock	Deck Lifting Wire	£14.86 £12.38
16	MO112523060/0 In stock	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.70 £1.42
21	MO382318297/1 In stock	Axle From S.N 19FA3RON000413	£30.98 £25.82
22	MO112735599/0 In stock	Screw	£1.55 £1.29
23	MO325547231/1 Available to backorder	Lifting Deck Axle Plate From S.N 20JA3RON000567	£4.37 £3.64
24	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
26	MO325670010/1 In stock	Antifriction Washer	£1.33 £1.11
27	MO125033109/0 In stock	Connecting Rod	£9.42 £7.85
44	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.55 £1.29
