ESTATE 2084 - 2014-2017 - 2T2000481/14 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

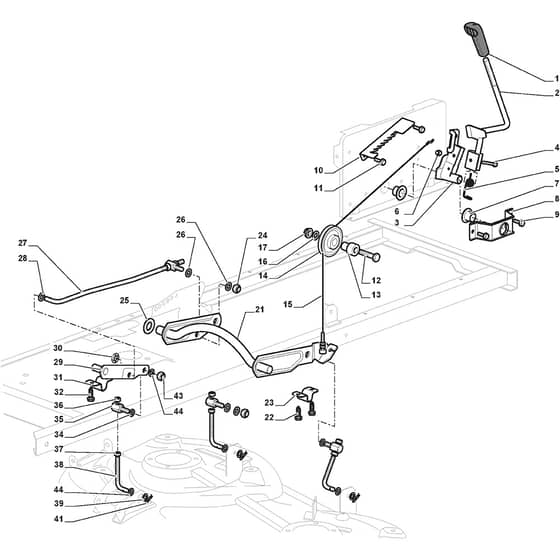

Stiga ESTATE 2084 Parts Diagram

Product Name - ESTATE 2084

Model Year - 2014-2017

Model Type - MPS 84

Art.N - 2T2000481/14

Engine Model - Stiga 7750

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318255/0 Available to backorder	Lever	£13.94 £11.62
3	MO382318231/1 Available to backorder	Axle	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 In stock	Screw	£1.55 £1.29
44	MO325670008/1 In stock	Anti-Friction Washer 10.8 X 19 X 0.8	£1.55 £1.29
