ES 534 TR-G - 2015-2017 - 299265343/MER - Castel Garden Rotary Mower Engine Cover Diagram

Name: ES 534 TR-G - 2015-2017 - 299265343/MER - Castel Garden Rotary Mower Engine Cover Diagram
SKU: es_534_tr_g_299265343_mer_engine_cover-group
Price: 1.29 GBP
Availability: InStock

Part No. es_534_tr_g_299265343_mer_engine_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ES 534 TR-G - 2015-2017 - 299265343/MER - Castel Garden Rotary Mower Engine Cover Diagram

Description

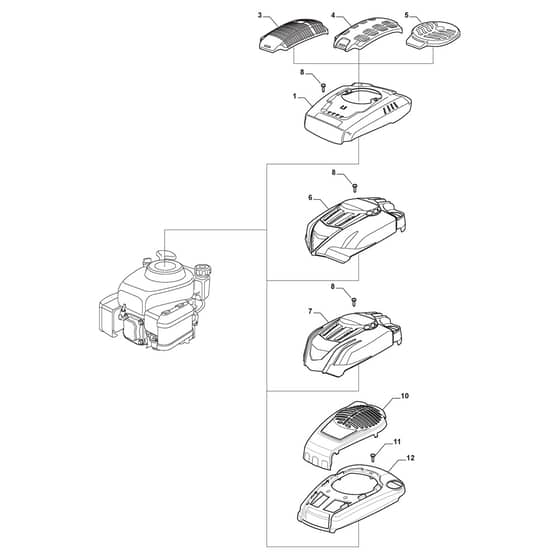

Castel Garden ES 534 TR-G Parts Diagram

Product Name - ES 534 TR - G

Model Year - 2015-2017

Model Type - ES 534 TR

Art.N - 299265343/MER

Engine Model -

	Part No.	Details
1	MO322055463/1 Available to backorder	Cover	£9.20 £7.67
3	MO322055452/0 Available to backorder	Cover. Black	£5.06 £4.22
4	MO322055450/0 Available to backorder	Cover. Black	£5.76 £4.80
5	MO322055439/0 Available to backorder	Cover. Black	£3.92 £3.27
7	MO381002067/0 Available to backorder	Cover	£30.19 £25.16
8	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
10	MO322055516/0 Available to backorder	Engine Cover	£6.19 £5.16
11	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
12	MO322055517/0 Available to backorder	Engine Base Cover. Yellow	£17.60 £14.67
12	MO322055552/0 Available to backorder	Engine Base Cover [Black]	£16.61 £13.84
