ES 464 TR-G - 2012-2019 - 299264643/12 - Castel Garden Rotary Mower Blade Diagram

Description

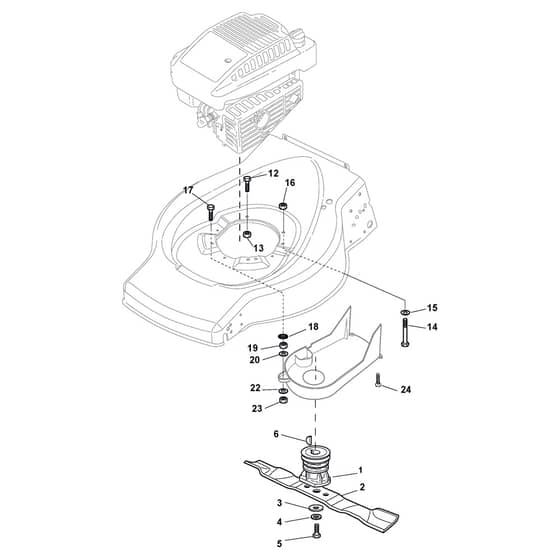

Castel Garden ES 464 TR-G Parts Diagram

Product Name - ES 464 TR - G

Model Year - 2012-2019

Model Type - ES 464 TR

Art.N - 299264643/12

Engine Model -

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.30 £7.75
2	MO181004121/0 In stock	Mulching Blade To 31-8-2007	£12.78 £10.65
2	MO181004365/3 In stock	Mulching Blade From 01-9-2007	£12.06 £10.05
3	MO122160400/0 In stock	Elastic Disc From 01-9-2007	£1.84 £1.53
3	MO112369600/0 Available to backorder	Elastic Disc To 31-8-2007	£17.36 £14.47
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
13	MO112293201/0 In stock	Nut	£1.70 £1.42
14	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
15	MO112521350/0 In stock	Washer	£1.55 £1.29
17	MO112691115/0 Available to backorder	Screw ST. 150-196cc	£1.55 £1.29
17	MO112691200/0 Available to backorder	Screw ST. 140-160cc	£1.70 £1.42
18	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
19	MO112293200/0 In stock	Nut	£1.55 £1.29
20	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
22	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
22	MO122671651/0 In stock	Washer To 31-8-2006	£1.97 £1.64
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO112728697/0 In stock	Self-Tapping Screw Ka50 X 16	£1.55 £1.29
