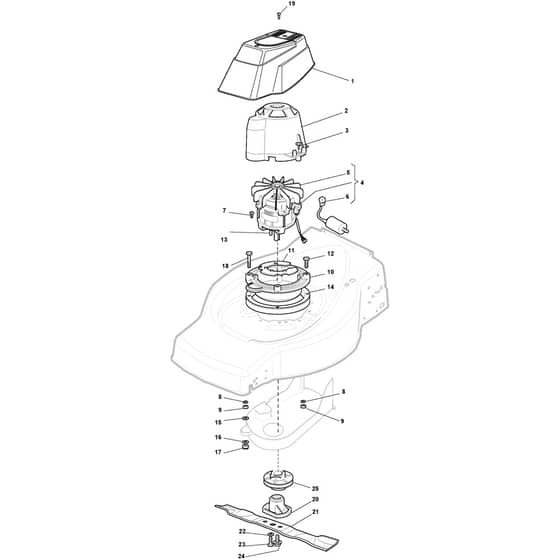

ES 460 TR - 2014-2019 - 299214663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Name: ES 460 TR - 2014-2019 - 299214663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram
SKU: es_460_tr_299214663_14_electric_motor_and_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ES 460 TR - 2014-2019 - 299214663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Description

Castel Garden ES 460 TR Parts Diagram

Product Name - ES 460 TR

Model Year - 2014-2019

Model Type - ES 460 TR

Art.N - 299214663/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055045/1 Available to backorder	Cover. Black	£10.20 £8.50
2	MO322785061/1 Available to backorder	Cover Support To 31-8-2006	£5.92 £4.93
2	MO322785210/1 Available to backorder	Support. Cover From 01-9-2013	£6.76 £5.63
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
4	MO118563721/0 Available to backorder	Electric Motor 1800W 230V (1800W) To 31-8-2009	£211.16 £175.97
4	MO118563641/1 Available to backorder	Electric Motor 1800W 230V (1800W) From 01-9-2009	£232.28 £193.57
5	MO118740054/0 Available to backorder	Fan Motor Atb	£9.14 £7.62
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.24 £2.70
12	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO322170960/1 Available to backorder	Spacer From 01-9-2006	£6.20 £5.17
15	MO122671651/0 Available to backorder	Washer From 01-9-2006	£1.97 £1.64
15	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.55 £1.29
16	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO112692000/0 Available to backorder	Screw	£1.97 £1.64
19	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
20	MO322463186/3 Available to backorder	Blade Hub From 01-9-2007	£8.08 £6.73
21	MO181004121/0 In stock	Mulching Blade To 31-8-2007	£12.79 £10.66
21	MO181004365/3 In stock	Mulching Blade From 01-9-2007	£13.40 £11.17
22	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO381004352/1 In stock	Screw From 01-9-2010	£4.08 £3.40
25	MO322601911/2 Available to backorder	Pulley From 01-9-2015	£6.20 £5.17
