ES 460 - 2019 - 299114663/MTF - Mountfield Rotary Mower Wheels Diagram

Name: ES 460 - 2019 - 299114663/MTF - Mountfield Rotary Mower Wheels Diagram
SKU: es_460_299114663_mtf_wheels-group
Price: 1.29 GBP
Availability: InStock

Part No. es_460_299114663_mtf_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

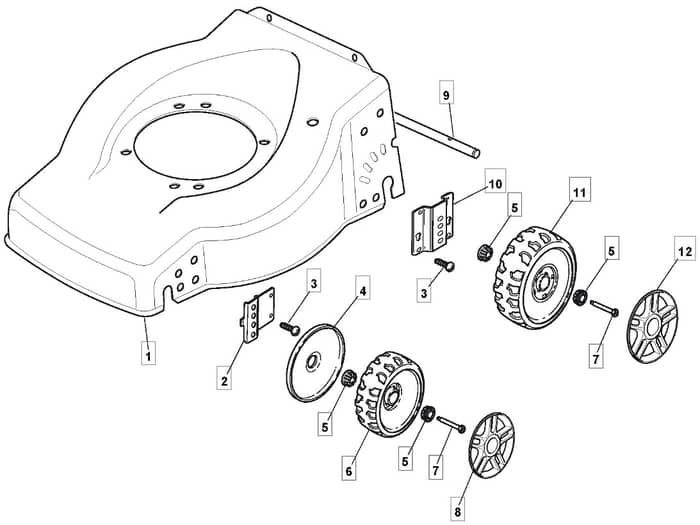

ES 460 - 2019 - 299114663/MTF - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield ES 460 Parts Diagram

Model Year - 2019

Model Type - ES 460

Art.N - 299114663/MTF

	Part No.	Details
2	MO322551523/0 Available to backorder	Front Plate	£10.40 £8.67
3	MO112728686/0 In stock	Screw	£1.55 £1.29
4	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
5	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.70 £1.42
5	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
6	MO322686091/1 In stock	Wheel	£6.77 £5.64
7	MO122524340/0 Available to backorder	Pin From 01-9-2006	£2.69 £2.24
7	MO122524321/0 Available to backorder	Pin To 31-8-2006	£5.06 £4.22
8	MOREPLA0000075 In stock	Hub Cap Grey Grey	£5.38 £4.48
10	MO322551525/0 Available to backorder	Rear Plate	£13.66 £11.38
11	MO322686092/0 Available to backorder	Wheel Ø 190 From 01-9-2006	£5.92 £4.93
11	MO381007347/0 Available to backorder	Wheel To 31-8-2006	£13.84 £11.53
12	MO322110492/0 Available to backorder	Beta Hub Cap D.210 [Grey]	£2.29 £1.91
