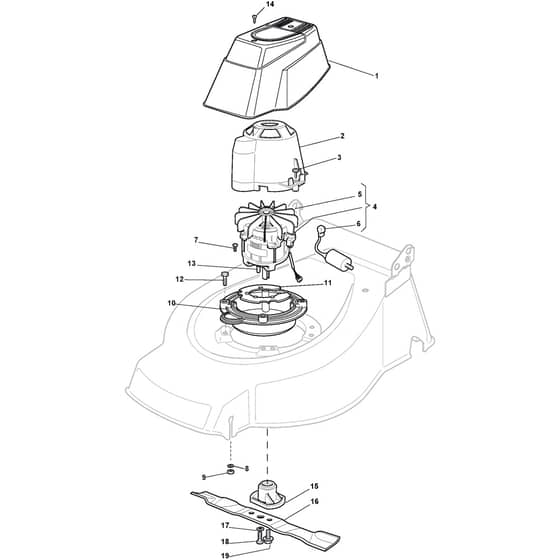

ES 460 - 2014-2019 - 299114663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Name: ES 460 - 2014-2019 - 299114663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram
SKU: es_460_299114663_14_electric_motor_and_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ES 460 - 2014-2019 - 299114663/14 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Description

Castel Garden ES 460 Parts Diagram

Product Name - ES 460

Model Year - 2014-2019

Model Type - ES 460

Art.N - 299114663/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055045/1 Available to backorder	Cover. Black	£10.20 £8.50
2	MO322785061/1 Available to backorder	Support. Cover From 01-9-2006	£5.92 £4.93
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
5	MO118740051/0 Available to backorder	Fan RST To 31-8-2007	£4.97 £4.14
5	MO118740054/0 Available to backorder	Fan Motor Atb ATB	£9.14 £7.62
6	MO118222045/0 Available to backorder	Condenser 16 Μf (Atb - 1600W) From 01-9-2001	£19.30 £16.08
6	MO118222038/0 Available to backorder	Condenser (RST - HLT 1600W) To 31-8-2007	£30.97 £25.81
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.24 £2.70
12	MO112793701/0 Available to backorder	Screw From 01-9-2013	£1.49 £1.24
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
15	MO322463186/3 Available to backorder	Blade Hub From 01-9-2007	£8.08 £6.73
16	MO181004365/3 In stock	Mulching Blade From 01-9-2001	£13.40 £11.17
17	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
18	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
19	MO381004352/1 In stock	Screw From 01-9-2010	£4.08 £3.40
