Toro eProline Heavy-Duty 53cm - 22276 (415200000 - 999999999) Handle

Name: Toro eProline Heavy-Duty 53cm - 22276 (415200000 - 999999999) Handle
SKU: eproline_heavy_duty_53cm_22276_4152999999999_handle-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eProline Heavy-Duty 53cm - 22276 (415200000 - 999999999) Handle

Description

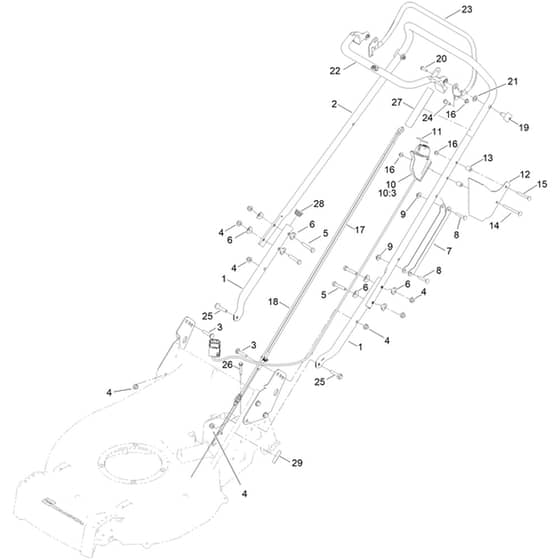

Toro eProline Heavy-Duty 53cm - 22276 (415200000 - 999999999) Handle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-5087-03 Available to backorder	Lower Handle	£49.86 £41.55
2	HA145-4022-03 Available to backorder	Upper Handle	£128.00 £106.67
3	HA3230-4 Available to backorder	Carriage Bolt	£0.86 £0.72
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
5	HA322-39 Available to backorder	Screw-Hh[.312-18X1.750.Gr8.Bo]	£1.73 £1.44
6	HA137-3009 Available to backorder	Cup Washer	£0.94 £0.78
7	HA134-5187-03 Available to backorder	Handle Cable Guard	£19.12 £15.93
8	HA108-0988 Available to backorder	Carriage Screw	£1.13 £0.94
9	HA114-3778 Available to backorder	Lock Nut	£1.54 £1.28
10	HA140-3891 Available to backorder	Starter Switch Assembly	£45.44 £37.87
10	HA140-4231 Available to backorder	[10.3] Starter Button Service Assembly	£6.34 £5.28
11	HA134-4691 Available to backorder	Decal - Control Speed	£2.36 £1.97
12	HA140-4168-03 Available to backorder	Switch Housing Guard	£20.32 £16.93
13	HA134-5188 Available to backorder	Spacer	£1.27 £1.06
14	HA137-9142 Available to backorder	Carriage Screw	£3.58 £2.98
15	HA136-7081 Available to backorder	Carriage Screw	£3.36 £2.80
16	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
17	HA145-1483 Available to backorder	60V Traction Cable	£55.02 £45.85
18	HA144-3180 Available to backorder	Brake Cable	£39.18 £32.65
19	HA340182 In stock	Pin-Pivot	£1.66 £1.38
20	HA09687 In stock	Screw	£1.68 £1.40
21	HA09688 Available to backorder	Washer-Nylon	£0.70 £0.58
22	HA111-9662 In stock	Opc Lever - Engine	£18.24 £15.20
23	HA111-9381-03 In stock	Lever-Clutch. Gearbox	£16.68 £13.90
24	HA42-3560 Available to backorder	Shoulder Bolt	£7.60 £6.33
25	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.70 £2.25
26	HA94-2691 Available to backorder	Screw-Hwh Taptite [.250-20 X 1.50	£1.60 £1.33
27	HA144-3175 Available to backorder	Decal - Start Controls	£7.76 £6.47
28	HA144-6379 Available to backorder	1 Inch Round Tube Plug	£4.66 £3.88
29	HA131-0822 Available to backorder	Self Propel Drive Decal	£6.20 £5.17
