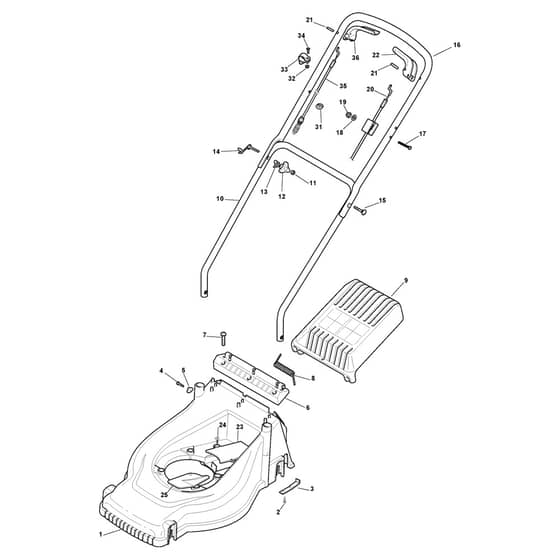

EP 434 TR - 2012-2013 - 2974300043/CN - Castel Garden Rotary Mower Deck and Handle, Upper Part Diagram

Name: EP 434 TR - 2012-2013 - 2974300043/CN - Castel Garden Rotary Mower Deck and Handle, Upper Part Diagram
SKU: ep_434_tr_2974300043_cn_deck_and_handle_upper_part-group
Price: 1.16 GBP
Availability: InStock

Part No. ep_434_tr_2974300043_cn_deck_and_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EP 434 TR - 2012-2013 - 2974300043/CN - Castel Garden Rotary Mower Deck and Handle, Upper Part Diagram

Description

Castel Garden EP 434 TR Parts Diagram

Product Name - EP 434 TR

Model Year - 2012-2013

Model Type - EP 434 TR

Art.N - 2974300043/CN

Engine Model -

	Part No.	Details
2	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
4	MO112728450/0 In stock	Screw	£1.55 £1.29
5	MO322545135/0 Available to backorder	Plate	£1.97 £1.64
8	MO122450430/0 Available to backorder	Spring	£4.78 £3.98
9	MO322600079/1 Available to backorder	Stone-Guard From 01-9-2011	£13.94 £11.62
11	MO112293200/0 In stock	Nut	£1.55 £1.29
12	MO122399900/0 In stock	Black Knob	£1.55 £1.29
13	MO122680006/1 In stock	Washer	£1.84 £1.53
14	MO181003801/1 Available to backorder	Guide Spring	£3.38 £2.82
15	MO112819201/0 In stock	Screw	£2.81 £2.34
17	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
18	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
20	MO181030079/0 In stock	Cable. Thread Engine Brake ST. 100cc Engine	£12.90 £10.75
21	MO112645710/0 In stock	Elastic Pin	£2.11 £1.76
22	MO322321700/1 In stock	Lever. Engine Brake Red From 01-9-2007	£3.52 £2.93
23	MO122060171/0 Available to backorder	Belt Protection	£3.10 £2.58
24	MO112728697/0 In stock	Screw	£1.55 £1.29
25	MO322484070/1 Available to backorder	Heat Protection From 01-9-2006	£2.24 £1.87
31	MO118564520/1 Available to backorder	Fairlead	£4.78 £3.98
32	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
33	MO322806521/0 Available to backorder	Clamp	£1.92 £1.60
35	MO381000704/0 Available to backorder	Cable Rear Drive	£24.19 £20.16
36	MO322321701/0 In stock	Clutch Drive Lever [Black]	£3.52 £2.93
