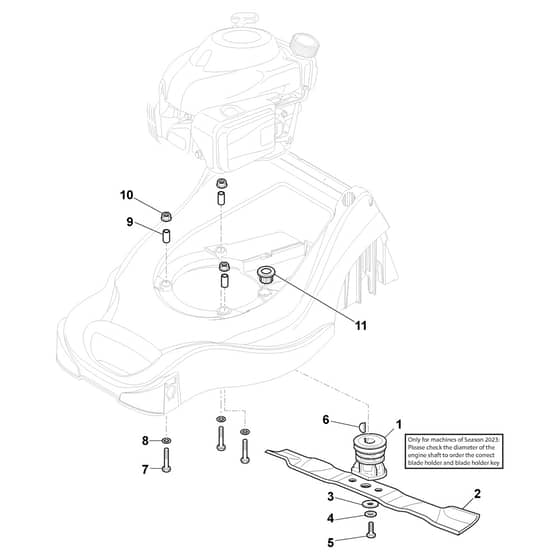

EP 414 TR - 2019 - 297412043/19 - Castel Garden Rotary Mower Blade Diagram

Name: EP 414 TR - 2019 - 297412043/19 - Castel Garden Rotary Mower Blade Diagram
SKU: ep_414_tr_297412043_19_blade-group
Price: 1.16 GBP
Availability: InStock

Part No. ep_414_tr_297412043_19_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EP 414 TR - 2019 - 297412043/19 - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden EP 414 TR Parts Diagram

Product Name - EP 414 TR

Model Year - 2019

Model Type - EP 414 TR

Art.N - 297412043/19

Engine Model -

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
2	MO181004360/3 In stock	Mulching Blade From 01-9-2011	£11.04 £9.20
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112523060/0 In stock	Washer	£1.55 £1.29
9	MO122167842/0 Available to backorder	Spacer From 01-9-2010	£3.38 £2.82
10	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
11	MO122040265/0 Available to backorder	Motor Bush	£1.39 £1.16
