Toro eMulticycler eL43VST 43cm - 21844 (321000001 - 321999999) Traction and Height-of-Cut

Name: Toro eMulticycler eL43VST 43cm - 21844 (321000001 - 321999999) Traction and Height-of-Cut
SKU: emulticycler_el43vst_43cm_21844_3211321999999_tractionheight_of_
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eMulticycler eL43VST 43cm - 21844 (321000001 - 321999999) Traction and Height-of-Cut

Description

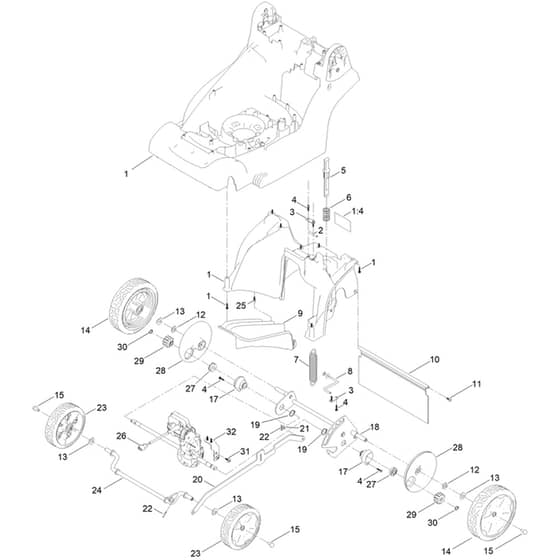

Toro eMulticycler eL43VST 43cm - 21844 (321000001 - 321999999) Traction and Height-of-Cut Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-6914 Available to backorder	Deck. Glued (43) [Toro]	£52.94 £44.12
1	HA134-5099 Available to backorder	[1.4] Decal - Safety	£119.99 £99.99
2	HA134-4096 Available to backorder	Bar. Spring Mount	£119.99 £99.99
3	HA134-4394 Available to backorder	Axle Plate. Small	£119.99 £99.99
4	HA134-7001 Available to backorder	Screw-T [M4-0.7 X 20 .Gl8.8. Cz]	£2.88 £2.40
5	HA134-4319 Available to backorder	Hoc Button Plunger	£119.99 £99.99
6	HA134-4088 Available to backorder	Spring. Hoc Button	£119.99 £99.99
7	HA134-4092 Available to backorder	Hoc Spring. 4 Wheel	£5.54 £4.62
8	HA134-7568 Available to backorder	Hoc Wire Asm	£3.52 £2.93
9	HA134-5295 Available to backorder	Mulch Plug	£10.54 £8.78
10	HA134-4437 Available to backorder	Shield-Trailing	£9.22 £7.68
11	HA117-1092 Available to backorder	Phillips Truss Head (Pth) Screw	£1.42 £1.18
12	HAZWP1L000U Available to backorder	Washer-Plain	£2.32 £1.93
13	HA134-4457 Available to backorder	Washer-Wave [13.3 X 26.7 X 0.447]	£119.99 £99.99
14	HA134-4363 Available to backorder	Wheel-Rear Assembly	£19.74 £16.45
15	HA134-4358 Available to backorder	Bolt-Hf[M8-1.25 X 16. Cl8.8.Blk]	£119.99 £99.99
17	HA134-4452 Available to backorder	Bearing Mount	£6.04 £5.03
18	HA134-4050 Available to backorder	Rear Axle Frame. Assy. Wheel	£43.92 £36.60
19	HA134-4435 Available to backorder	Circlip. Ext [.875 X .047]	£5.16 £4.30
20	HA134-4029 Available to backorder	Con-Rod. 4 Wheel	£18.44 £15.37
21	HA106-4756 Available to backorder	Plain Washer	£0.94 £0.78
22	HA134-4454 Available to backorder	Cotter Pin [M2.5 X 18]	£119.99 £99.99
23	HA134-4307 Available to backorder	Wheel-Toro Front Assembly	£13.16 £10.97
24	HA134-4312 Available to backorder	Front Axle. Assembly	£119.99 £99.99
25	HA134-5294 Available to backorder	Pin. Retaining. Mulch Plug	£5.78 £4.82
26	HA134-4102 Available to backorder	Transmission. 4-Wheel	£158.02 £131.68
27	HA104-8699 Available to backorder	Ball Bearing	£5.26 £4.38
28	HA134-4033 Available to backorder	Inner Cover. Rear Wheel	£6.96 £5.80
29	HA134-5214 Available to backorder	Gear-Pinion. 13T	£6.96 £5.80
30	HA32151-61 Available to backorder	Retaining Ring	£2.86 £2.38
31	HA134-4476 Available to backorder	Screw-T [M5-0.8 X 18 .Gl8.8. Cz]	£119.99 £99.99
32	HA134-4391 Available to backorder	Bracket. Gearbox. 4-Wheel	£5.88 £4.90
