EMPRESS 46 Li - 2021-2022 - 2L0486803/M21 - Mountfield Rotary Mower Deck Diagram

Description

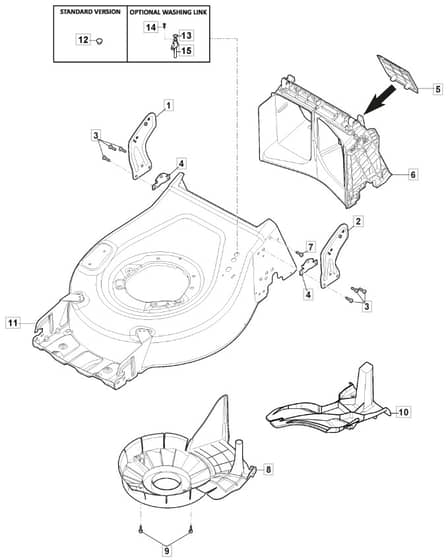

Mountfield EMPRESS 46 Li Parts Diagram

Model Year - 2021-2022

Model Type - CP1 480 SQ Li D48

Art.N - 2L0486803/M21

	Part No.	Details
1	MO381005195/2 Available to backorder	Bracket-Rh	£7.25 £6.04
2	MO381005197/2 Available to backorder	Left Bracket Black	£7.25 £6.04
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 In stock	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 In stock	Rear Conveyor	£20.11 £16.76
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060242/2 In stock	Belt Protection As Optional	£11.54 £9.62
9	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
10	MO322140250/1 In stock	Mulching Deflector As Optional	£12.94 £10.78
11	MO381005035/0 Available to backorder	Grey Deck Side Discharge	£181.60 £151.33
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 In stock	Washing Connection NOT for battery models	£1.70 £1.42
