ELECTRESS 38 Li Kit - 2021-2022 - 291382063/M21 - Mountfield Rotary Mower Main Assembly Diagram

Description

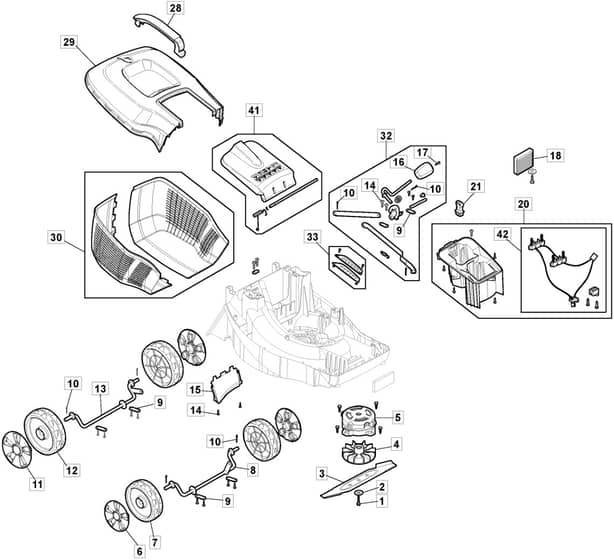

Mountfield ELECTRESS 38 Li Kit Parts Diagram

Model Year - 2021-2022

Model Type - E 380 LI 20 A

Art.N - 291382063/M21

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118811089/0 Available to backorder	Blade Bolt	£1.69 £1.41
2	MO112585100/0 Available to backorder	Washer	£1.55 £1.29
3	MO118811210/0 Available to backorder	Blade	£15.62 £13.02
4	MO118811091/0 Available to backorder	Blade Hub	£5.12 £4.27
5	MO118811178/0 Available to backorder	Electric Motor	£94.32 £78.60
6	MO118811102/0 Available to backorder	Hub Cap	£2.95 £2.46
7	MO118811087/0 Available to backorder	Wheel	£13.93 £11.61
8	MO118811211/0 Available to backorder	Front Axle	£27.31 £22.76
9	MO118811180/0 Available to backorder	Plate	£2.95 £2.46
10	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
11	MO118811193/0 Available to backorder	Hub Cap	£2.95 £2.46
12	MO118811182/0 Available to backorder	Wheel	£14.64 £12.20
13	MO118811212/0 Available to backorder	Rear Axle	£24.36 £20.30
14	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
15	MO118811213/0 Available to backorder	Conveyor	£8.45 £7.04
16	MO118811185/0 Available to backorder	Height Adjustment Lever	£1.82 £1.52
17	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
18	MO118811186/0 Available to backorder	Pcb Board	£82.36 £68.63
20	MO118811194/1 Available to backorder	Battery Housing	£16.75 £13.96
21	MO118811099/0 Available to backorder	Safety Key	£5.35 £4.46
28	MO118811216/0 Available to backorder	Grasscatcher Handle	£4.50 £3.75
29	MO118811238/0 Available to backorder	Grasscatcher Upper Part. Grey	£18.52 £15.43
30	MO118811239/0 Available to backorder	Grasscatcher Lower Part Kit. Grey	£35.20 £29.33
32	MO118811217/0 Available to backorder	Height Adj Levers Kit	£43.64 £36.37
33	MO118811218/0 Available to backorder	Height Adj Plate Kit	£13.66 £11.38
41	MO118811226/0 Available to backorder	Stoneguard Assy. Grey	£18.72 £15.60
42	MO118811233/0 Available to backorder	Battery Connection Assy	£8.57 £7.14
