EL 4800 R PD - 2008 - 294485763/M08 - Mountfield Rotary Mower Upper Handle Diagram

Name: EL 4800 R PD - 2008 - 294485763/M08 - Mountfield Rotary Mower Upper Handle Diagram
SKU: el_4800_r_pd_294485763_m08_upper_handle-group
Price: 1.16 GBP
Availability: InStock

Part No. el_4800_r_pd_294485763_m08_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

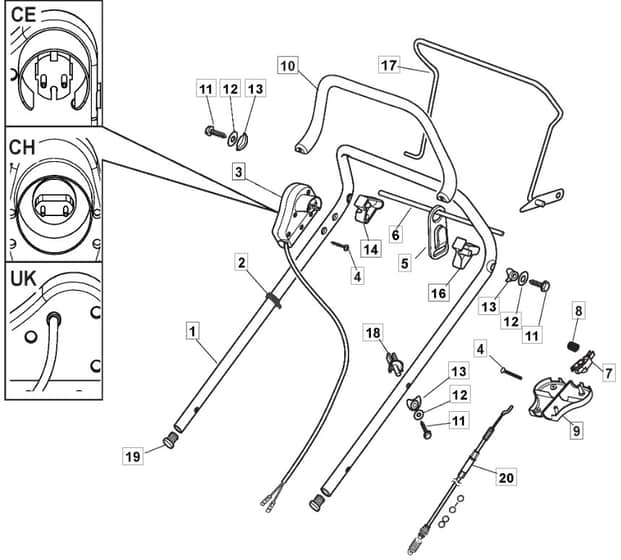

EL 4800 R PD - 2008 - 294485763/M08 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield EL 4800 R PD Parts Diagram

Model Year - 2008

Model Type - TD 480 TR

Art.N - 294485763/M08

	Part No.	Details
1	MO381006604/0 Available to backorder	Handle. Upper Part	£33.79 £28.16
2	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
3	MO381600547/2 Available to backorder	Dead Hand Switch Ce	£26.88 £22.40
4	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
5	MO322195101/4 Available to backorder	Fairlead	£2.11 £1.76
6	MO122010251/0 Available to backorder	Hook	£2.24 £1.87
7	MO322230350/2 Available to backorder	Left Fulcrum	£1.97 £1.64
8	MO122450115/0 In stock	Spring	£1.55 £1.29
9	MO322785144/1 Available to backorder	Support	£2.82 £2.35
10	MO322322881/2 Available to backorder	Lever	£7.87 £6.56
11	MO112735103/0 Available to backorder	Screw	£1.84 £1.53
12	MO112523040/0 In stock	Washer	£1.55 £1.29
13	MO122680006/1 In stock	Washer	£1.84 £1.53
14	MO322806518/2 Available to backorder	Lever Support Right	£2.53 £2.11
16	MO322806519/2 Available to backorder	Lever Support Left	£2.53 £2.11
17	MO181001245/1 Available to backorder	Driving Lever	£25.84 £21.53
18	MO122806520/0 Available to backorder	Support. Adjuster	£2.24 £1.87
19	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
20	MO381030012/0 Available to backorder	Clutch Drive Cable	£21.66 £18.05
