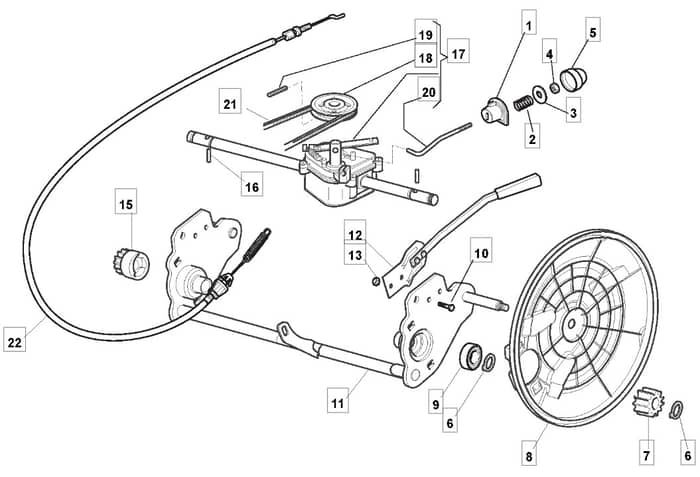

EL 4800 PD BW - 2010 - 294487063/M08 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield EL 4800 PD BW Parts Diagram

Model Year - 2010

Model Type - TD 480 W TR

Art.N - 294487063/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
2	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
3	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
4	MO112154510/0 In stock	Nut	£1.55 £1.29
5	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
7	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
8	MO322600160/0 Available to backorder	Protection. Wheel	£5.21 £4.34
9	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
10	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
11	MO381002853/2 Available to backorder	Rear Wheel Axle	£85.87 £71.56
12	MO381003326/1 Available to backorder	Lever. Height Adjustment	£33.79 £28.16
13	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
16	MO122753000/0 In stock	Pin	£1.55 £1.29
17	MO181003076/1 Available to backorder	G.T. Gear Box	£121.07 £100.89
18	MO122601909/0 In stock	Pulley	£5.64 £4.70
19	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
20	MO122033283/0 In stock	Adjustment Rod	£4.66 £3.88
21	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
22	MO381000671/0 Available to backorder	Clutch Drive Cable	£16.06 £13.38
