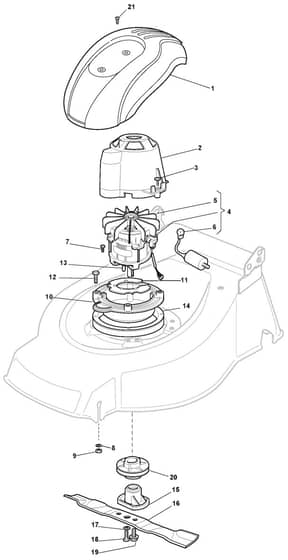

EL 460 PD - 2010 - 299480673/M10 - Mountfield Rotary Mower Blade Diagram

Name: EL 460 PD - 2010 - 299480673/M10 - Mountfield Rotary Mower Blade Diagram
SKU: el_460_pd_299480673_m10_blade-group
Price: 1.11 GBP
Availability: InStock

Part No. el_460_pd_299480673_m10_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 460 PD - 2010 - 299480673/M10 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield EL 460 PD Parts Diagram

Model Year - 2010

Model Type - NT 480 TR

Art.N - 299480673/M10

	Part No.	Details
1	MO122055065/0 Available to backorder	Ciao Cover Black	£12.67 £10.56
2	MO322785210/1 Available to backorder	Support	£6.77 £5.64
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
4	MO118563721/0 Available to backorder	Electric Motor 1800W 230V (1800W) To 31-8-2009	£211.15 £175.96
4	MO118563641/1 Available to backorder	Electric Motor 1800W 230V (1800W) From 01-9-2009	£232.27 £193.56
5	MO118740054/0 Available to backorder	Fan Motor Atb	£9.65 £8.04
7	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.61 £5.51
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.25 £2.71
12	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO322170960/1 Available to backorder	Spacer	£6.19 £5.16
15	MO322463186/3 Available to backorder	Blade Hub From 01-9-2007	£8.08 £6.73
16	MO181004346/3 In stock	Left Mulching. Blade To 31-8-2015	£12.72 £10.60
16	MO181004460/0 In stock	Mulching Blade From 01-9-2015	£14.14 £11.78
16	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
17	MO112583500/0 In stock	Grower	£1.55 £1.29
18	MO112793101/0 In stock	Screw	£1.55 £1.29
19	MO381004352/1 In stock	Screw	£4.08 £3.40
20	MO322601911/2 Available to backorder	Pulley	£6.20 £5.17
21	MO112728722/0 Available to backorder	Flanged Screw D.5 X 25	£1.55 £1.29
