EL 46 R PD - 2006-2007 - 294485763/MOR - Mountfield Rotary Mower Upper Handle Diagram

Description

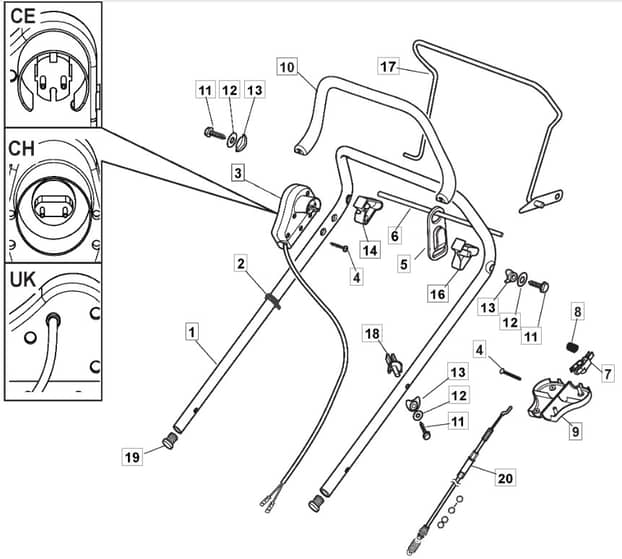

Mountfield EL 46 R PD Parts Diagram

Model Year - 2006-2007

Model Type - TD 480 TR

Art.N - 294485763/MOR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006604/0 Available to backorder	Handle. Upper Part	£33.79 £28.16
2	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
3	MO381600548/0 Available to backorder	Dead Hand Switch Uk	£89.39 £74.49
4	MO112728701/0 Available to backorder	Screw	£1.40 £1.17
5	MO322195101/4 Available to backorder	Fairlead	£2.12 £1.77
6	MO122010251/0 Available to backorder	Hook	£2.26 £1.88
7	MO322230350/2 Available to backorder	Left Fulcrum	£1.97 £1.64
8	MO122450115/0 In stock	Spring	£1.55 £1.29
9	MO322785144/1 Available to backorder	Support	£2.81 £2.34
10	MO322322881/2 Available to backorder	Lever. Engine Brake Yellow	£7.88 £6.57
11	MO112735103/0 Available to backorder	Screw	£1.82 £1.52
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO122680006/1 In stock	Washer	£1.75 £1.46
14	MO322806518/2 Available to backorder	Lever Support Right	£2.53 £2.11
16	MO322806519/2 Available to backorder	Lever Support Left	£2.53 £2.11
17	MO181001245/1 Available to backorder	Driving Lever	£25.84 £21.53
18	MO122806520/0 Available to backorder	Support. Adjuster	£2.26 £1.88
19	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
20	MO381030012/0 Available to backorder	Clutch Drive Cable	£21.67 £18.06
