EL 46 R HP - 2006-2007 - 294480673/MOR - Mountfield Rotary Mower Roller Diagram

Description

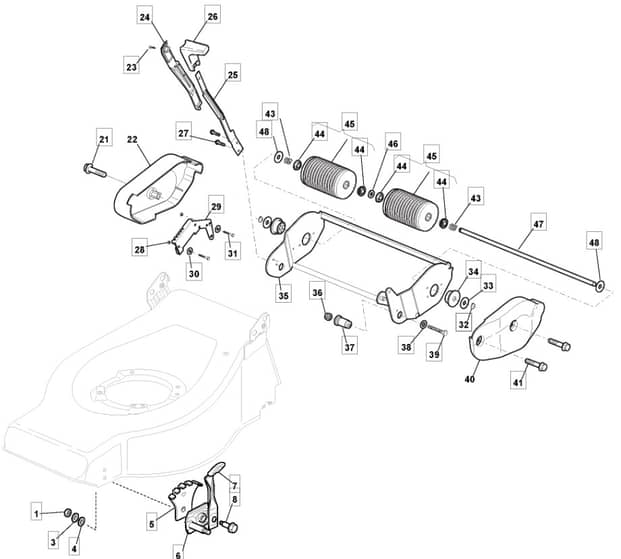

Mountfield EL 46 R HP Parts Diagram

Model Year - 2006-2007

Model Type - TD 480

Art.N - 294480673/MOR

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
6	MO381005082/0 In stock	Wheel Support	Was £17.18 £14.32 Special Price £10.79 £8.99
7	MO481003285/1 In stock	Lever	£19.52 £16.27
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
21	MO112735594/0 Available to backorder	Screw	£1.63 £1.36
23	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
24	MO322109722/0 Available to backorder	Lever Cover Red	£3.79 £3.16
25	MO322321505/0 In stock	Lever. Height Adjustment	£36.11 £30.09
26	MO322399805/0 In stock	Knob	£13.73 £11.44
27	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
28	MO112154330/0 In stock	Nut	£1.55 £1.29
30	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
31	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
32	MO122450063/0 Available to backorder	Spring To 31-8-2006	£1.55 £1.29
32	MO112000957/0 Available to backorder	Benzing Ring From 01-9-2006	£1.63 £1.36
34	MO322034512/0 Available to backorder	Bushing	£1.97 £1.64
35	MO381005109/1 Available to backorder	Roller Support	£136.54 £113.78
36	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO122785132/0 Available to backorder	Roller Support	£4.24 £3.53
38	MO112523060/0 In stock	Washer	£1.55 £1.29
39	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
41	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
43	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
44	MO122122206/0 In stock	Bearing	£1.84 £1.53
45	MO381007400/0 In stock	Roller	£20.96 £17.47
46	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
47	MO122033360/0 Available to backorder	Axle. Roller	£6.32 £5.27
48	MO322672151/0 Available to backorder	Anti-Friction Washer 12.2 X 30 X 0.8	£1.84 £1.53
