EL 46 R HP - 2006-2007 - 294480673/MOR - Mountfield Rotary Mower Grass Bag Diagram

Description

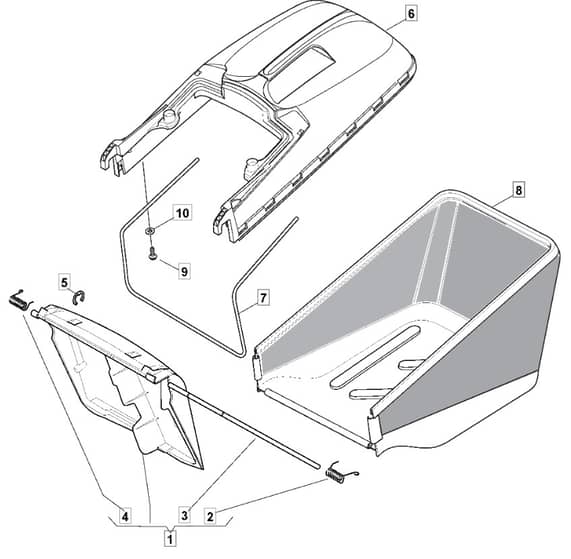

Mountfield EL 46 R HP Parts Diagram

Model Year - 2006-2007

Model Type - TD 480

Art.N - 294480673/MOR

	Part No.	Details
1	MO381008021/3 Available to backorder	Stone Guard	£20.77 £17.31
2	MO122450420/1 Available to backorder	Left Protection Spring	£1.97 £1.64
3	MO122517906/1 Available to backorder	Fulcrum Pin	£14.66 £12.22
4	MO122450410/1 Available to backorder	Right Spring	£12.13 £10.11
5	MO112000930/0 In stock	Benzing Ring	£1.55 £1.29
6	MO381486013/0 Available to backorder	Grass-Box. Upper Part To 31-8-2004	£22.30 £18.58
7	MO122608525/2 In stock	Lower Stiffening To 31-8-2004	£13.12 £10.93
7	MO122608527/0 Available to backorder	Grassc. Lower Stiff. 48 Roller From 01-9-2004	£11.41 £9.51
8	MO181002227/0 Available to backorder	Fabric Grasscatcher Wip Roller Black From 01-9-2007	£52.08 £43.40
9	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
10	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.57 £1.31
