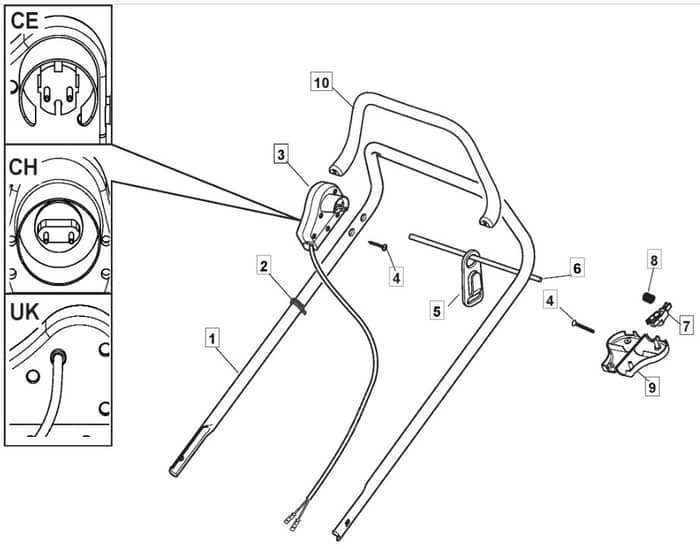

EL 46 HP - 2008 - 294484063/BQ - Mountfield Rotary Mower Upper Handle Diagram

Name: EL 46 HP - 2008 - 294484063/BQ - Mountfield Rotary Mower Upper Handle Diagram
SKU: el_46_hp_294484063_bq_upper_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 46 HP - 2008 - 294484063/BQ - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield EL 46 HP Parts Diagram

Model Year - 2008

Model Type - TD 480

Art.N - 294484063/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007017/2 Available to backorder	Handle	£27.59 £22.99
2	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
3	MO381600548/0 Available to backorder	Dead Hand Switch Uk	£89.39 £74.49
3	MO381600548/2 Available to backorder	Dead Hand Switch Uk	£88.88 £74.07
4	MO112728701/0 Available to backorder	Screw	£1.40 £1.17
5	MO322195101/4 Available to backorder	Fairlead	£2.12 £1.77
6	MO122010251/0 Available to backorder	Hook	£2.26 £1.88
7	MO322230350/2 Available to backorder	Fulcrum Pin	£1.97 £1.64
8	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
9	MO322785144/1 Available to backorder	Support	£2.81 £2.34
10	MO322322881/2 Available to backorder	Long Dead Hand Switch Lever [Black]	£7.88 £6.57
