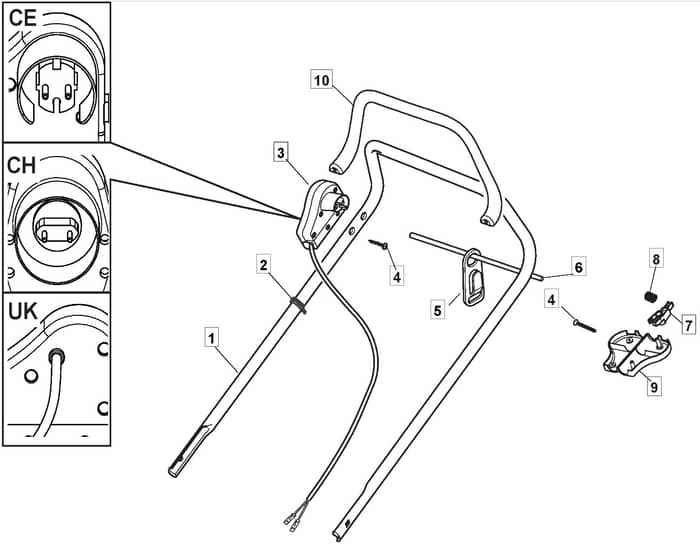

EL 46 HP - 2008-2009 - 294484063/UM8 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield EL 46 HP Parts Diagram

Model Year - 2008-2009

Model Type - TD 480

Art.N - 294484063/UM8

	Part No.	Details
1	MO381007017/2 Available to backorder	Handle	£27.58 £22.98
2	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
3	MO381600548/0 Available to backorder	Dead Hand Switch Uk	£89.39 £74.49
3	MO381600548/2 Available to backorder	Dead Hand Switch Uk	£93.73 £78.11
4	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
5	MO322195101/4 Available to backorder	Fairlead	£2.11 £1.76
6	MO122010251/0 Available to backorder	Hook	£2.24 £1.87
7	MO322230350/2 Available to backorder	Fulcrum Pin	£1.97 £1.64
8	MO122450115/0 In stock	Spring	£1.55 £1.29
9	MO322785144/1 Available to backorder	Support	£2.82 £2.35
10	MO322322881/2 Available to backorder	Long Dead Hand Switch Lever [Black]	£7.87 £6.56
