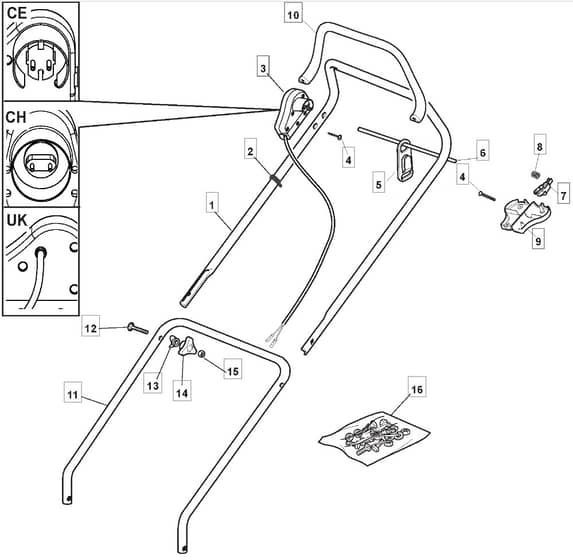

EL 4100 - 2009-2011 - 294411663/MI8 - Mountfield Rotary Mower Handle Diagram

Name: EL 4100 - 2009-2011 - 294411663/MI8 - Mountfield Rotary Mower Handle Diagram
SKU: el_4100_294411663_mi8_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 4100 - 2009-2011 - 294411663/MI8 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield EL 4100 Parts Diagram

Model Year - 2009-2011

Model Type - SPL 410

Art.N - 294411663/MI8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006571/0 Available to backorder	Handle. Upper Part	£24.22 £20.18
2	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
3	MO381600547/2 Available to backorder	Dead Hand Switch Ce	£26.88 £22.40
4	MO112728701/0 Available to backorder	Screw	£1.40 £1.17
5	MO322195101/4 Available to backorder	Fairlead	£2.12 £1.77

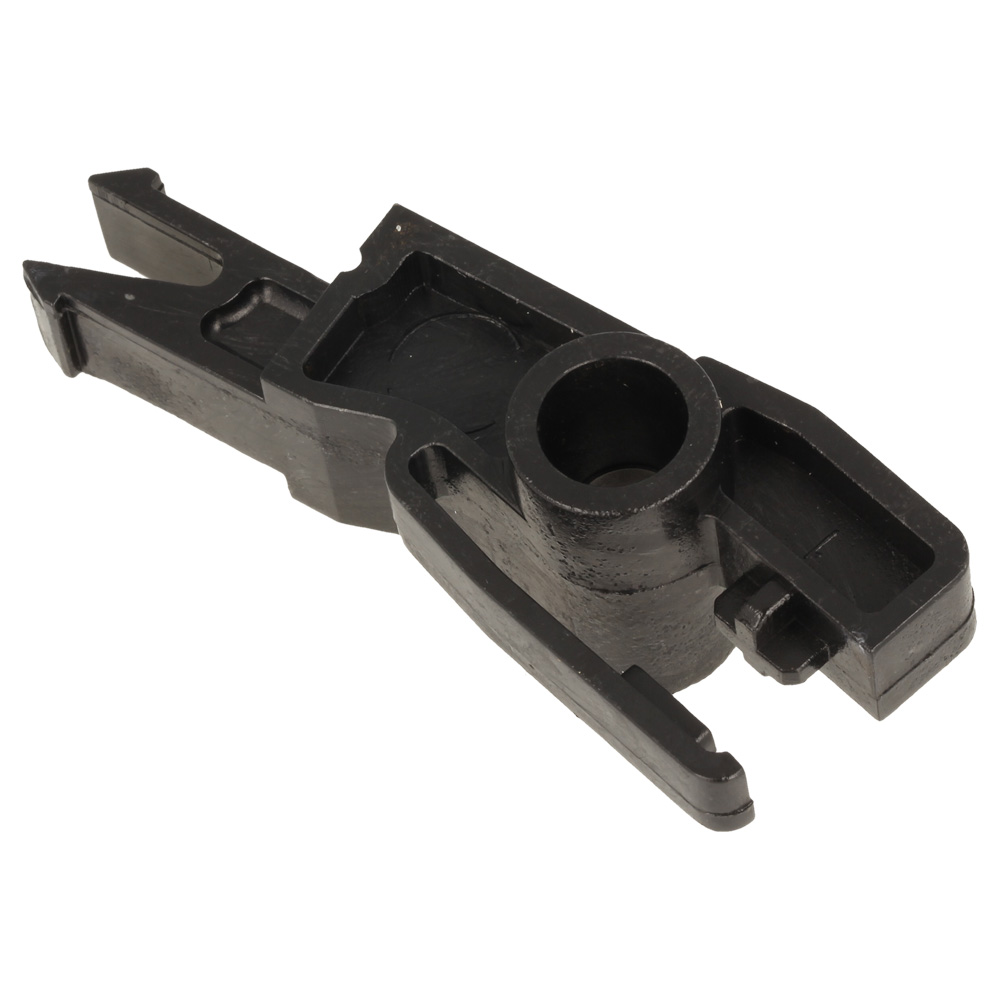

7	MO322230350/2 Available to backorder	Left Fulcrum	£1.97 £1.64
8	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
9	MO322785144/1 Available to backorder	Support	£2.81 £2.34
10	MO322322880/1 Available to backorder	Lever. Engine Brake Black From 01-9-2007	£8.53 £7.11
11	MO381006661/0 Available to backorder	Handle. Lower Part	£25.18 £20.98
12	MO112819201/0 In stock	Screw	£2.81 £2.34
13	MO122680006/1 In stock	Washer	£1.75 £1.46
14	MO122399900/0 In stock	Black Knob	£1.55 £1.29
15	MO112293200/0 In stock	Nut	£1.55 £1.29
